Configuration of Our Beer Equipmen
We provide small and medium brewery equipment for brewers on home and abroad.
Each of the brewing machine we product will be well welded, polished and tested before shipment.
Before you inquire, please confirm questions below:
1-Capacities from 100 liter to 10000 liter brewery can be chose, what capacity do you need, 7bbl per batch?
2-What kind of heating source do you prefer, electric, gas or steam?
3-Would you like some other equipment, such as bottle filling and capping machine, keg filling and cleaning machine, steam boiler, beer tower...?
4-What's the electricity voltage in your place?
Here follows is the parameter of the 7bbl beer brewing equipment(about 820L), please check for reference.
|
NO
|
Equipment
|
Specification
|
Quantity
|
|
Brewhouse system
|
Malt miller
|
|
1
|
|
Mash &Lautering tun
|
820L
|
1
|
|
Brew Kettle&whirlpool tank
|
820L
|
1
|
|
Hot liquid tank
|
820L
|
1
|
|
Plate heat exchanger
|
8m2
|
1
|
|
Wort oxygenator
|
|
1
|
|
Pump
|
3t/h
|
2
|
|
Working platform
|
|
1
|
|
Fermentation system
|
Fermentation tank
|
820L
|
6
|
|
Yeast adding tank
|
50L
|
1
|
|
Cooling system
|
Cooling compressor |
7P
|
1
|
|
Glycol water tank
|
1200L
|
1
|
|
Pump for cool water tank
|
3t/h
|
1
|
|
CIP Washing system
|
Alkali tank
|
100L
|
1
|
|
Sterilization tank
|
100L
|
1
|
|
Pump
|
3t/h
|
1
|
|
Control system
|
Digital display controlling system
|
1
|
|
Spare parts
|
All the necessary hoses, pipes, valves, clamps/gaskets, thermometer and gauges…etc
|
|
|
Spare Parts
|
Our Spare Parts
|
|
Pipe line for brewhouse
|
SUS304
|
|
Measuring cylinder
|
SUS304
|
|
Butterfly valve
|
Ø32
|
|
Butterfly valve
|
Ø38
|
|
Sight glass
|
Ø32
|
|
Saccharimeter
|
0-10; 10-20
|
|
Spent grains harrow
|
SUS 304
|
|
Steam solenoid valve
|
Ø32
|
|
Fermenter’s safety valve
|
ø32
|
|
Fermenter’s Sample valve
|
ø32
|
|
Pressure gauge
|
0-0.6Mpa
|
|
Pipe line for cooling unit
|
SUS 304
|
|
Cooling water solenoid valve
|
ø32
|
|
Cooling pipe insulation
|
|
|
Expansion valve for cooling compressor
|
|
|
Control box cable
|
|
|
Signal wire
|
|
|
SIEMENS frequency convertor
|
V20
|
|
Electric relay
|
Omron
|
|
Temperature sensor
|
PT100
|
Clients' Country
Germany, Czech Republic, USA, Canada, Russia, Sweden, Paraguay, Singapore, Australia, Finland...
Feature
1-Brew all kinds of beer: pale beer, brown beer, stout beer....
2-Customized parameter: a. capacity(100L, 200L, 300L, 500L, 1000L, 10BBL, 2000L, 3000L...)
b. voltage(220v or 380v or other electricity voltage )
c. material thickness(our standard is inner wall 3mm sus304, outer wall 1.5mm sus304, insulation 100mm PU or rock wool)
d. dimension of all the tanks(length, height, width)
e. heating source(electric, steam, direct gas fire heating)
3-Water and Pressure Test is made before shipment.
Equipment Application
We, Jinan MIBE Machinery Co.,Ltd & Jinan Rainbow Machinery are a professional manufacturing and trading company for good quality Beer Brewing Systems, ranging from 100 liter to 10000 liter per batch, which is used for home, Bar/Pub, Restaurant, Hotel and Small Beer Factory.
- Brewhouse System
- Fermentation System
- Cooling System
- CIP System
- Control System
- Filtration System (need or not?)
- Bottle Machines (need or not?)
- Keg Machines (need or not?)
Our Service
| Considerate servise |
We can provide services such as product design( we recommend suitable equipment as per your budget), beer tank layout, installation and training of beer fermentation... |
| Other Equipment |
We also provide bottle filling and washing machine, keg filling and washing machine, label machine, keg and steam boiler as per your requirement |
| Guarantee |
36 months for the main tank |

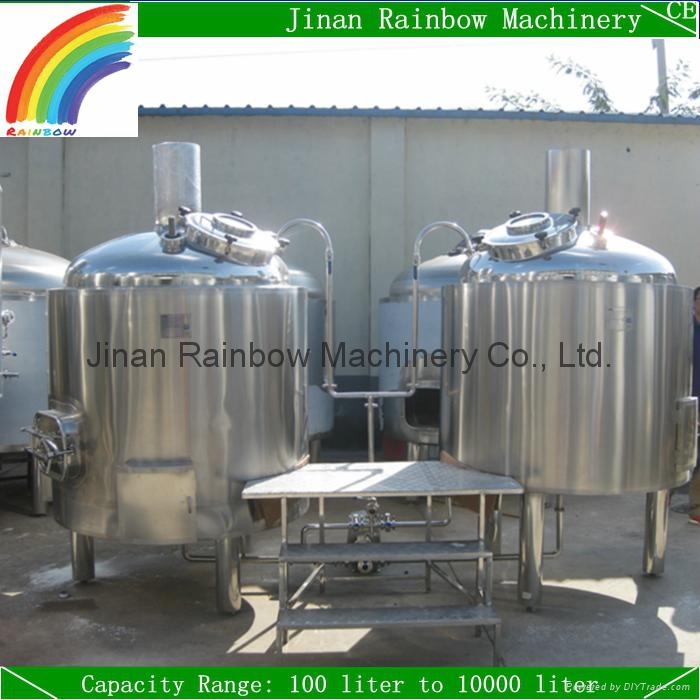

Equipment Images
Polishing and Welding
Packaging and Shipping
