COMPANY PROFILE:
We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a competitive price, with product design, production, sales, and installation support.
We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.
♦ Engineers are available for Overseas service. Provide installation, commissioning/testing, maintaining and personal training, beer production technology.
MAIN CONFIGURATIONS:

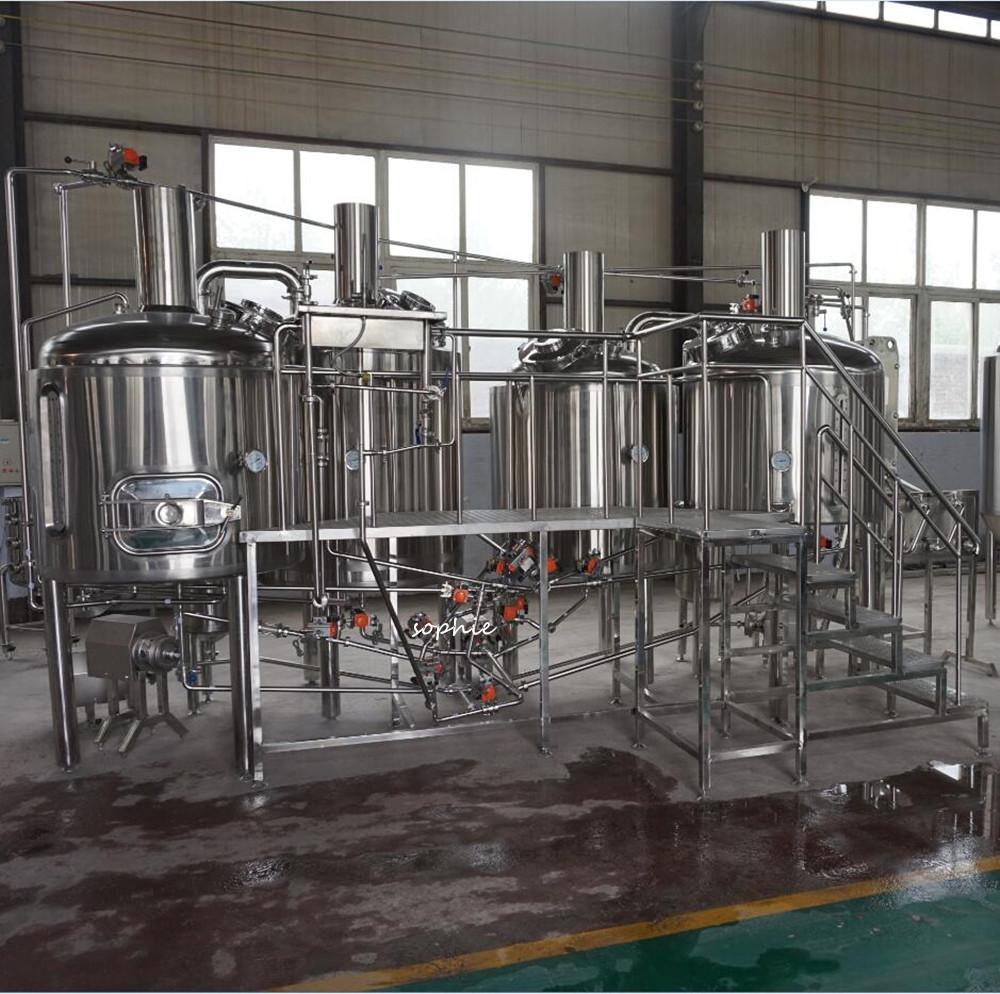

This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank), please check the details in the following chart.
Optional: 1- mash/brew kettle, lauter tun/whirlpool
2- mash/brew kettle, lauter tun, whirlpool
3- mash tun, lauter tun, brew kettle/whirlpool
4- mash tun, lauter tun, brew kettle, whirlpool
The 3000L brewing system configuration for your reference.
|
Items
|
Equipment
|
Specification
|
Quantity
(PCS)
|
|
Malt miller
|
Malt miller
|
500kg/hour
|
1
|
|
Brew house
|
Mash tun
|
3000L
|
1
|
| Lauter tun |
3000L |
1 |
|
Brew kettle/whirlpool
|
3000L
|
1
|
|
Hot liquor tank
|
3000L
|
1
|
|
Plate heat exchanger
|
30 m2
|
1
|
|
Pump
|
5 m³/h
|
2
|
|
Wort oxygenator
|
|
1
|
|
Working platform
|
|
1
|
|
Fermentation
|
Fermenter
|
3000L
|
6
|
|
Yeast adding tank
|
50L
|
1
|
|
Cooling unit
|
Glycol water tank
|
5000L
|
1
|
|
Cooling compressor
|
15hp
|
2
|
|
Water pump
|
5m³/h
|
1
|
|
CIP unit
|
Alkali tank
|
200L
|
1
|
|
Sterilization tank
|
200L
|
1
|
|
Pump
|
5 m³/h
|
1
|
|
Control unit
|
Siemens PLC controlling system/PID control panel
|
1
|
|
Filter system
|
Kieselguhr filter machine
|
500L/H
|
1
|
|
Bright beer tank
|
3000L
|
1
|
|
Spare parts
|
All necessary spare parts such as pipes, valves, gauges and clamps…etc.
|
Heating source: electricity, baine-marie heating, gas fired or steam
Material: stainless steel 304/304L/316
Warranty: 36 months for main equipments
Main features of brewhouse and fermentation:
Brewhouse system:
1) - Inner wall stainless steel 304, 3mm;
-surface wall stainless steel 304, 2mm
2) -Dome top, top manway with glass
-Side manway, cone bottom 160 degree
3) - Insulation: polyurethane/rockwool 100mm;
- with inside CIP washing ball
- agitator/rake
- removable false bottom, sparging arm
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer....
Fermentation system:
1) - Inner wall stainless steel 304, 3mm;
-surface wall stainless steel 304, 2mm
2) -Dome top, conical bottom,
-Side mounted manway
3) -Insulation: polyurethane 100mm
4) -Glycol cooling jackets on both cylinder and cone
5) - Inside 360 degree rotating CIP washing ball;
- CIP arm
- Pressure gauge
- safety&vacuum valve on top
- sample valve
-bung apparatus
- rotating racking arm
- thermometer
-carbonation stone
- dry hops port on top
6) -100% TIG welding with pure argon gas shield
-Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner
-Testing pressure: 3 bar
-working pressure: 1.5-2 bar
For Your Reference:
1. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L...( 1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.
It can be customized, such as the capacity, material, voltage(like 380v, 50Hz, 3phases), heating source, etc.
2. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,
ALE, LAGER.
OPTIONAL:
Beer bottling line: bottle washing machine, filling machine, capping machine,
pasteurization tank, labelling machine.
Kegs washer and filler.
Beer kegs(10L,20L,30L,50L...).
Steam boiler.
All the necessary spare parts:
