COMPANY PROFILE:
We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per batch (used for home, pub/hotel, factory, etc.) at a competitive price, with product design, production, sales, and installation support.
We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.
MAIN CONFIGURATIONS:
Optional combination for brewhouse:
1- mash tun, lauter tun, brew kettle/whirlpool
2- mash/brew kettle, lauter tun/whirlpool
3- mash/brew kettle, lauter tun, whirlpool
4- mash tun, lauter tun, brew kettle, whirlpool
Heating source: electricity, steam, baine-marie heating, gas fired
Material: stainless steel 304/304L
Warranty: 36 months for main equipments
Main specifications of brewhouse and fermentation:
Brewhouse system:
1) - Interior wall stainless steel 304, 3mm;
- exterior wall stainless steel 304, 2mm
2) - Dome top, top manway with glass
- Side manway, cone bottom 160 degree
3) - Insulation: polyurethane/rockwool 100mm;

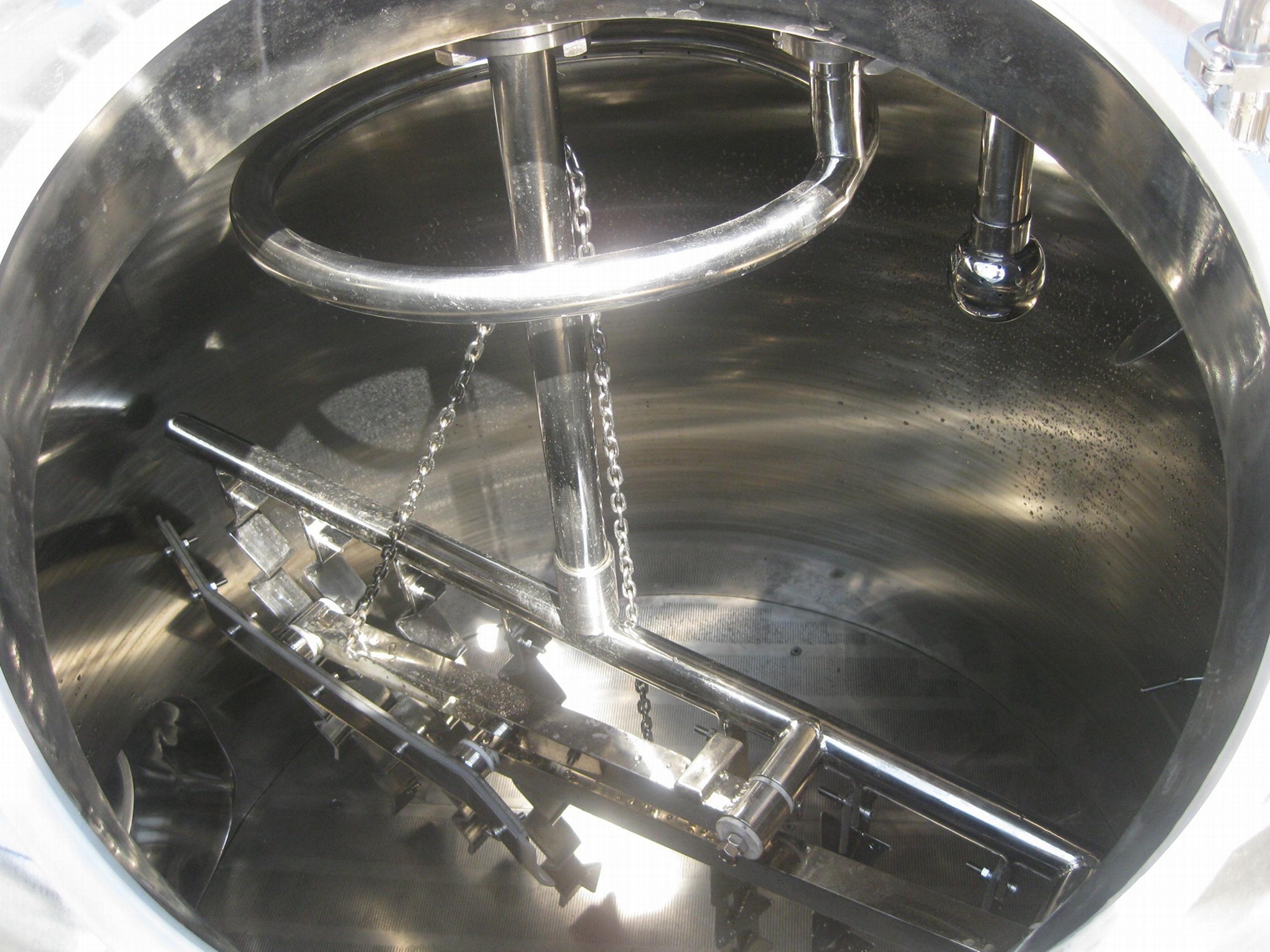

-with inside CIP washing ball
-agitator
- removable false bottom, sparging arm
- sight glass
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer...

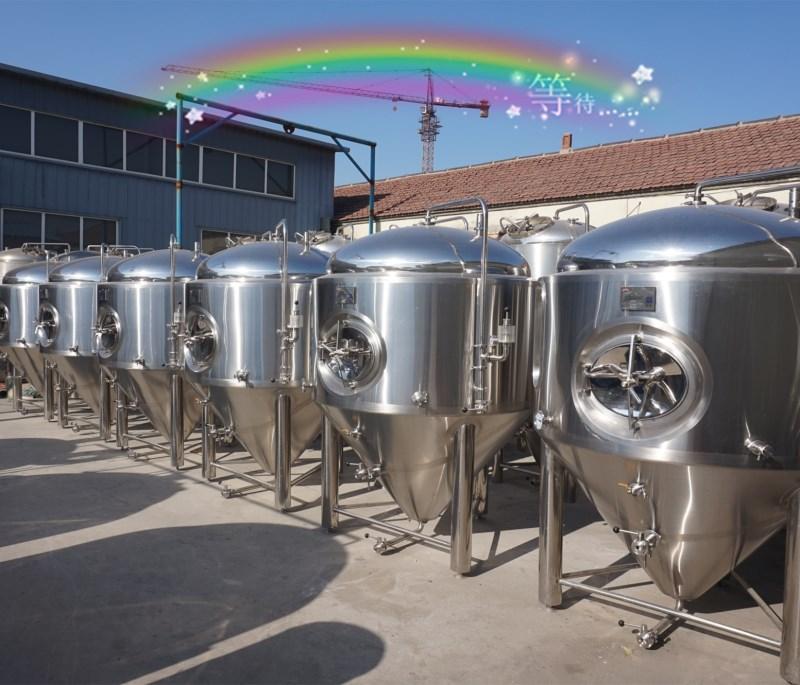

Fermentation system:
1) - Interior wall stainless steel 304, 3mm;
-exterior wall stainless steel 304, 2mm
2) -Dome top, conical bottom,
-Side mounted manway
3) -Insulation: polyurethane 100mm
4) -Glycol cooling jackets on both cylinder and cone
5) - Inside 360 degree rotating CIP washing ball;
- CIP arm
- Pressure gauge
- safety&vacuum valve on top
- sample valve
- rotating racking arm
- thermometer
-carbonation stone (optional)
- dry hops port on top
6) -100% TIG welding with pure argon gas shield
-Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner
-Testing pressure: 3 bar
-working pressure: 1.5-2 bar
For Your Information:
1. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L, 10000L...( 1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.
It can be customized, such as the capacity, material, voltage(like 380v, 50Hz, 3phases), heating source, etc.
2. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,
to meet different taste of customers.
OPTIONAL:
Beer bottling line: bottle washing machine, filling machine, capping machine,
pasteurization tank, labelling machine.
Kegs washer and filler.
Beer kegs(10L,20L,30L,50L...).
Steam boiler.
