COMPANY PROFILE:
We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-10000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.
MAIN CONFIGURATIONS:

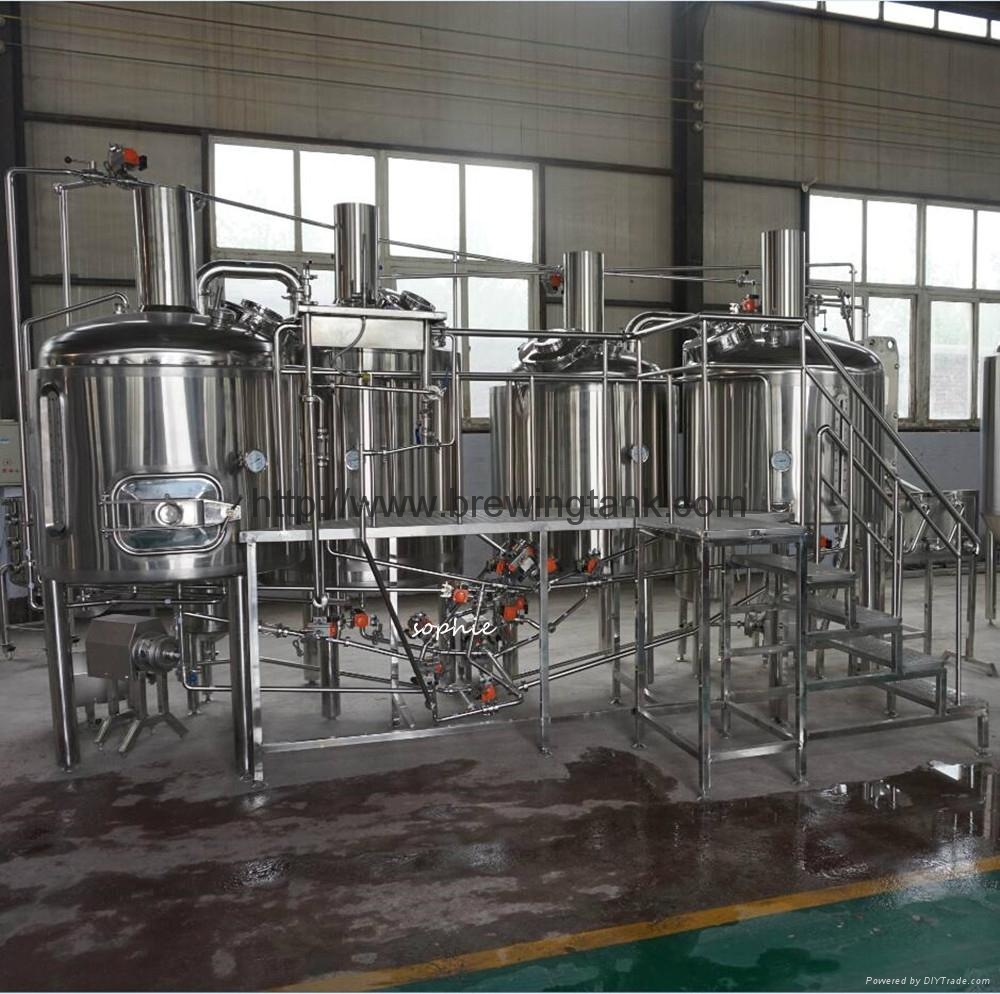

This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank), please check the details in the following chart.
Optional: 1- mash/brew kettle, lauter tun/whirlpool
2- mash/brew kettle, lauter tun, whirlpool
3- mash tun, lauter tun, brew kettle/whirlpool
4- mash tun, lauter tun, brew kettle, whirlpool
This is the 500L brewing system configuration for your reference.
|
ITEMS
|
EQUIPMENT LIST
|
CAPACITY
|
QTY
|
|
Malt miller
|
Malt Miller
|
200kg/h
|
1
|
|
BrewHouse System
|
Mash Tun & Lautering Tun
|
500L
|
1
|
|
Brew Kettle & Whirlpool
|
500L
|
1
|
|
Hot Liquid Tank
|
500L
|
1
|
|
Plate Heat Exchanger
|
5m2
|
1
|
|
Wort pump
|
3m³/h
|
1
|
|
Working platform
|
|
1
|
|
Fermentation System
|
Fermentation Tank
|
500L
|
6
|
|
Yeast Adding Tank
|
20L
|
1
|
|
Wort Oxygenator
|
|
1
|
|
Cooling System
|
Glycol Water Tank
|
1000L
|
1
|
|
Refrigerator
|
7hp
|
1
|
|
Cooling water pump
|
3m³/h
|
1
|
|
CIP Washing System
|
Alkali Tank
|
100L
|
1
|
|
Sterilization tank
|
100L
|
1
|
|
CIP water pump
|
3m³/h
|
1
|
|
Control System
|
Digital display controlling system
|
1
|
Heating source: electricity, baine-marie heating, gas fired or steam
Material: stainless steel 304 or copper
Warranty: 36 months for main equipments
Main features of brewhouse and fermentation:
Brewhouse system:
1) - inner wall stainless steel 304, 3mm;
- surface wall stainless steel 304 or copper, 2mm
2) Dome top, top manway with glass
Side manway, cone bottom 160 degree
3) - insulation: polyurethane/rockwool 100mm;
- with inside CIP washing ball
- raking agitator
- removable false bottom
- sparging arm, sight glass
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer....
Fermentation system:
1) - Inner wall stainless steel 304, 3mm;
- surface wall stainless steel 304, 2mm
2) Dome top, conical bottom,
Top manway
3) Insulation: polyurethane 100mm
4) Glycol cooling jackets on both cylinder and cone
5) - Inside 360 degree rotating CIP washing ball;
- CIP arm
- Pressure gauge
- safety&vacuum valve on top
- sample valve
- rotating racking arm
- thermometer
- dry hops port
-carbonation stone (optional)
6) -100% TIG welding with pure argon gas shield
-Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner
-Testing pressure: 3 bar
-working pressure: 1.5-2 bar
Spare parts:
-Pipe line for brewhous
-Butterfly valves
-Sight glass
-Measuring cylinder
-Saccharimeter, 0-10&10-20
-Spent grains harrow
-Cooling solenoid valve
-Safety valve for fermenters
-Pressure gauge
-Thermometer
-Pipeline for cooling
-Temperaturesensor, PT100
For Your Reference:
1. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 1200L, 2000L, 3000L, 5000L, 8000L...( 1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.
It can be customized, such as the capacity, material, voltage(like 380v, 50Hz, 3phases), heating source, etc.
2. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,
to meet different taste of customers.
OPTIONAL:
Beer bottling line: bottle washing machine, filling machine, capping machine,
pasteurization tank, labelling machine.
Kegs washer and filler
Beer kegs(10L,20L,30L,50L...), beer tower.
Steam boiler.
All the necessary spare parts:
