COMPANY PROFILE:
We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a competitive price, with product design, production, sales, and installation support.
We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Paraguay, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, South Africa, Kenya, Taiwan....etc.
MAIN CONFIGURATIONS:
This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquor tank), please check the details in the following chart.
Optional combination for brewhouse:
1- mash/brew kettle, lauter tun/whirlpool
2- mash/brew kettle, lauter tun, whirlpool
3- mash tun, lauter tun, brew kettle/whirlpool
4- mash tun, lauter tun, brew kettle, whirlpool
This is the 500L brewing system configuration for your reference.
|
ITEMS
|
EQUIPMENT LIST
|
CAPACITY
|
QTY
|
|
Malt miller
|
Malt Miller
|
300kg/h
|
1
|
|
BrewHouse System
|
Mash Tun & Lautering Tun
|
500L
|
1
|
|
Brew Kettle & Whirlpool
|
500L
|
1
|
|
Hot Liquor Tank
|
1000L
|
1
|
|
Plate Heat Exchanger
|
5m2
|
1
|
|
Wort pump
|
3m³/h
|
2
|
|
Working platform
|
|
1
|
|
Fermentation System
|
Fermentation Tank
|
500L
|
6
|
|
Yeast Adding Tank
|
20L
|
1
|
|
Wort Oxygenator
|
|
1
|
|
Cooling System
|
Glycol Water Tank
|
1000L
|
1
|
|
Glycol chiller
|
5hp
|
1
|
|
Cooling water pump
|
3m³/h
|
1
|
|
CIP Washing System
|
Alkali Tank
|
100L
|
1
|
|
Sterilization tank
|
100L
|
1
|
|
CIP water pump
|
3m³/h
|
1
|
|
Control System
|
PID controlling system
|
1
|
Heating source: electricity, baine-marie heating, gas fired or steam
Material: stainless steel 304/316 or copper.
Warranty: 5 years for main tanks.
Main specifications of brewhouse and fermentation:
Brewhouse system:
1) - Inner wall stainless steel 304, 3mm;
- surface wall stainless steel 304 or copper, 2mm
2) -Dome top, top manway with glass
-Side manway, cone bottom 160 degree

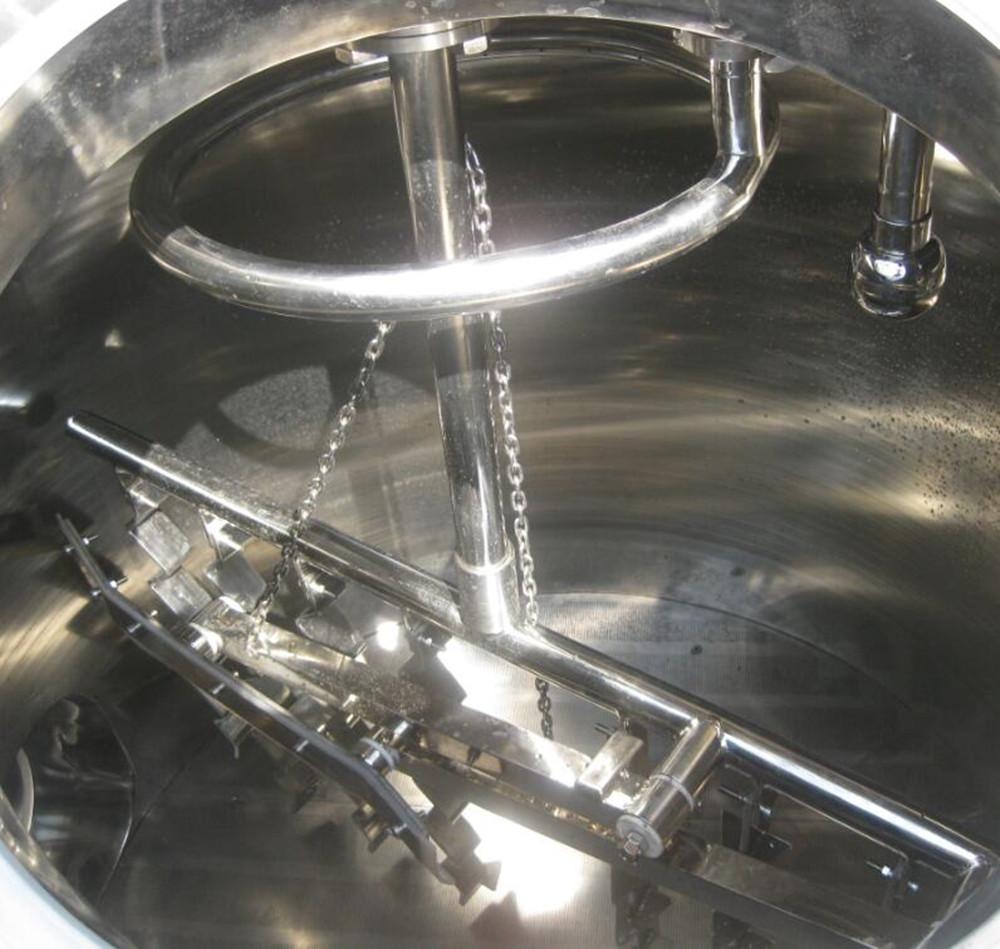

3) - Insulation: polyurethane/rockwool 100mm;
- with inside CIP washing ball
- agitator
- removable false bottom
- sparging arm, sight glass
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer....

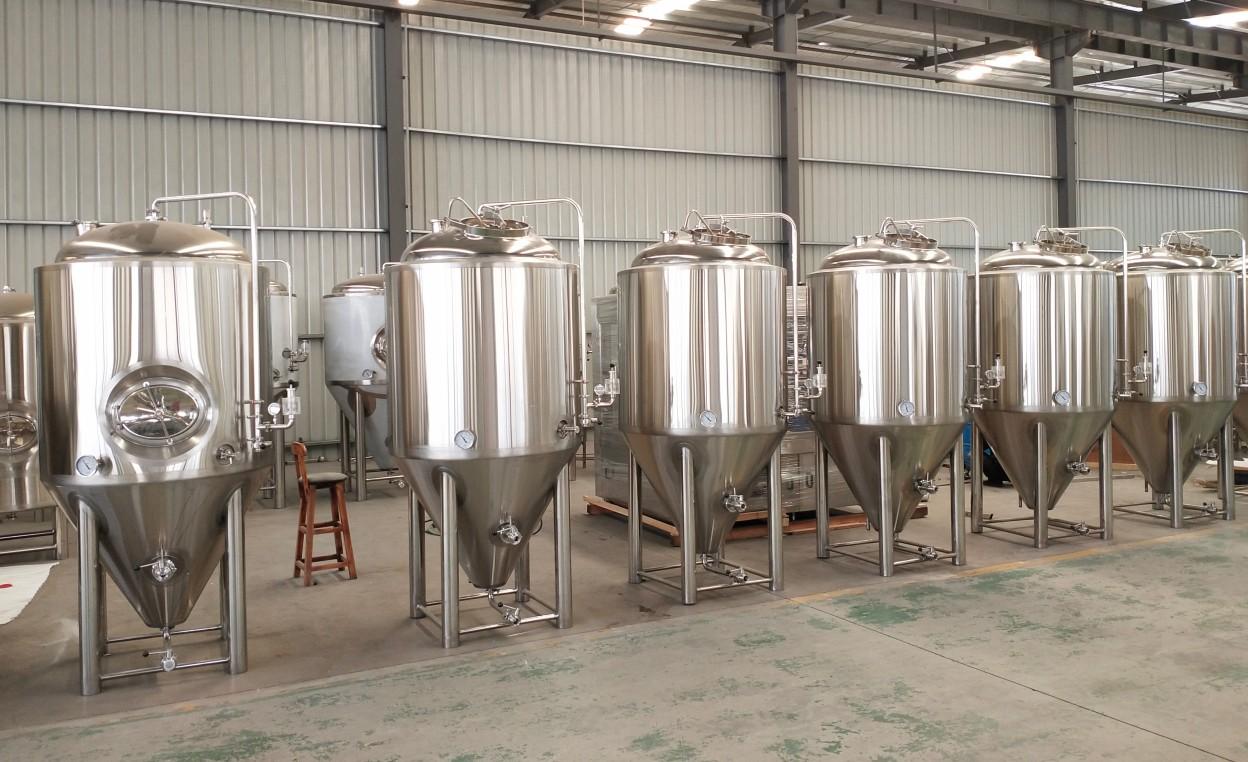

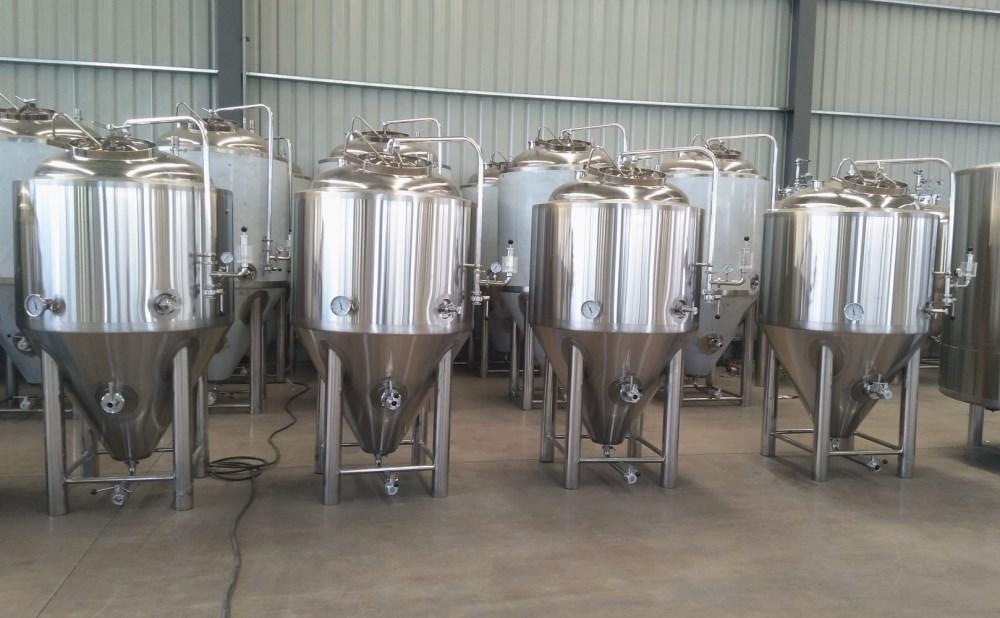

Fermentation system:
1) - Inner wall stainless steel 304, 3mm;
- surface wall stainless steel 304, 2mm
2) -Dome top, conical bottom,
-Top mounted manway
3) -Insulation: polyurethane 100mm
4) -Glycol cooling jackets on both cylinder and cone
5) - Inside 360 degree rotating CIP washing ball;
- CIP arm
- Pressure gauge
- safety&vacuum valve on top
- sample valve
- rotating racking arm
- thermometer
- dry hops port on top
-carbonation stone (optional)
6) -100% TIG welding with pure argon gas shield
-Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner
-Testing pressure: 3 bar
-working pressure: 1.5-2 bar
OPTIONAL:
Beer bottling line: bottle washing machine, filling machine, capping machine,
pasteurization tank, labelling machine.
Kegs washer and filler.(one head or double head)
Beer kegs(10L,20L,30L,50L...).
Steam boiler.
Kieselguhr filter machine
For your information:
1. For electrical elements part, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB....etc. Also do UL standard.
2. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 1200L, 2000L, 3000L, 5000L, 8000L...(1bbl, 2bbl, 5bbl, 10bbl....) per patch for your choice.
It can be customized, such as the capacity(dimension can be customized), material(stainless steel 304/316 or copper), voltage(like 380v, 50Hz, 3phases), heating source(electric, steam or gas fired heating), etc.
3. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc.
ALE, LAGER....
