Company Profile:
We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.
Professional factory beer brewing equipment
MAIN CONFIGURATIONS:
This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquor tank), please check the details in the following chart.
Optional: 1- mash/brew kettle, lauter tun/whirlpool
2- mash/brew kettle, lauter tun, whirlpool
3- mash tun, lauter tun, brew kettle/whirlpool
4- mash tun, lauter tun, brew kettle, whirlpool
This is the 5000L brewing system configuration for your reference.
|
Items
|
Equipment
|
Specification
|
Quantity
(PCS)
|
|
Malt miller
|
Malt miller
|
1000kg/hour
|
1
|
|
Brew house
|
Mash tun/lautering tun
|
5000L
|
1
|
|
Brew kettle/whirlpool
|
5000L
|
1
|
|
Hot liquor tank
|
5000L
|
1
|
|
Plate heat exchanger
|
50 m2
|
1
|
|
Pump
|
5m³/h
|
2
|
|
Wort oxygenator
|
|
1
|
|
Working platform
|
|
1
|
|
Fermentation
|
Fermenter
|
5000L
|
6
|
|
Yeast adding tank
|
50L
|
1
|
|
Cooling unit
|
Glycol water tank
|
8000L
|
1
|
|
Cooling compressor
|
10hp
|
4
|
|
Water pump
|
5 m³/h
|
1
|
|
CIP unit
|
Alkali tank
|
200L
|
1
|
|
Sterilization tank
|
200L
|
1
|
|
Pump
|
5 m³/h
|
1
|
|
Control unit
|
Siemens PLC controlling system
|
1
|
|
Filter system
|
Kieselguhr filter machine
|
500L/H
|
1
|
|
Bright tank
|
5000L
|
1
|
|
Spare parts
|
All necessary spare parts such as pipes, valves, gauges and clamps…etc.
|
Heating source: electricity, baine-marie heating, gas fired or steam
Material: stainless steel 304 or copper
Warranty: 36 months for main equipments
Main features of brewhouse and fermentation:
Brewhouse system:
1) - inner wall stainless steel 304, 3mm;
-surface wall stainless steel 304, 2mm
2) -Dome top, top manway with glass
-Side manway, cone bottom 160 degree
3) - insulation: polyurethane/rockwool 100mm;
- with inside CIP washing ball
-agitator
- removable false bottom
- sparging arm, sight glass
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer....

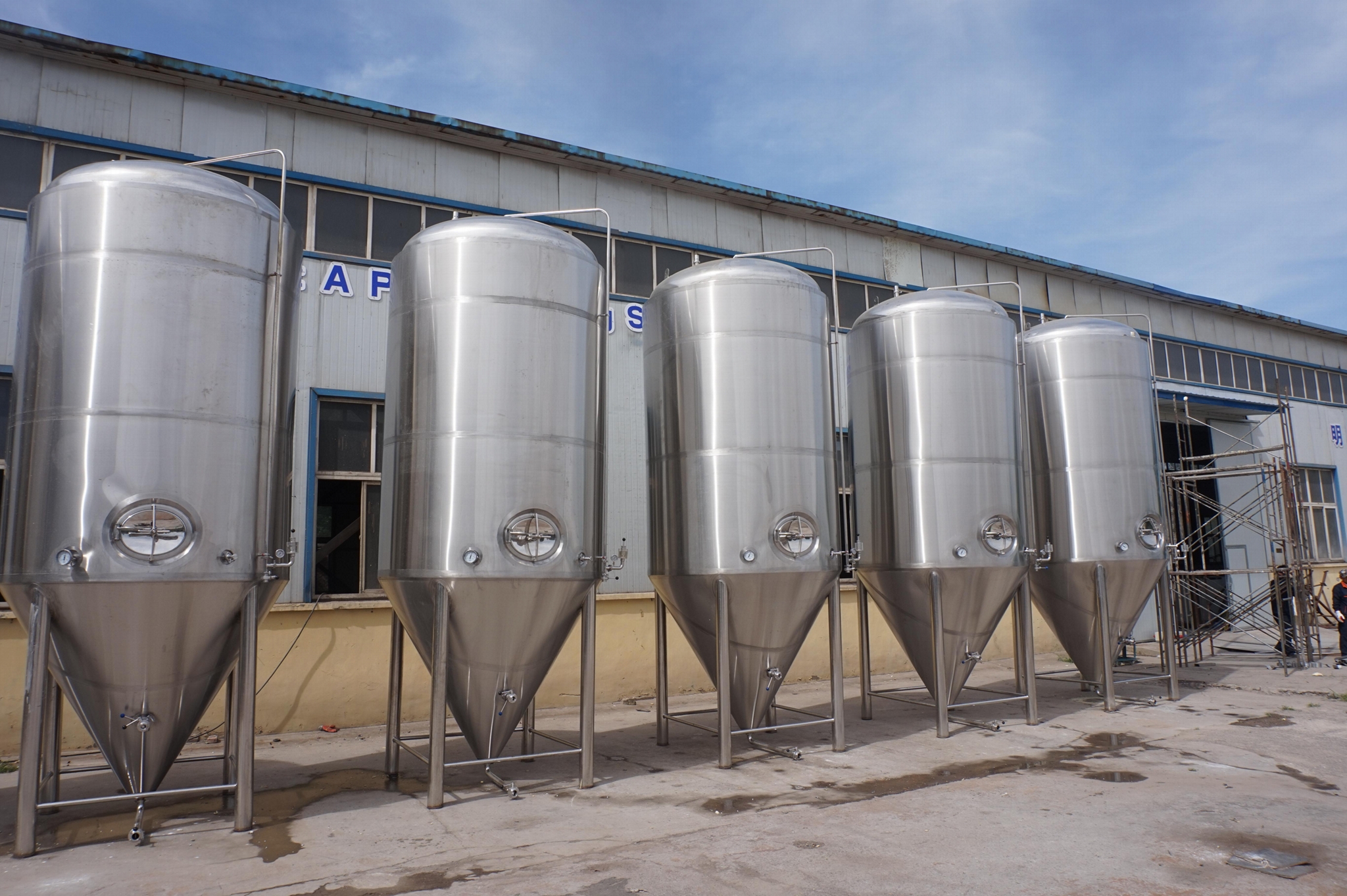

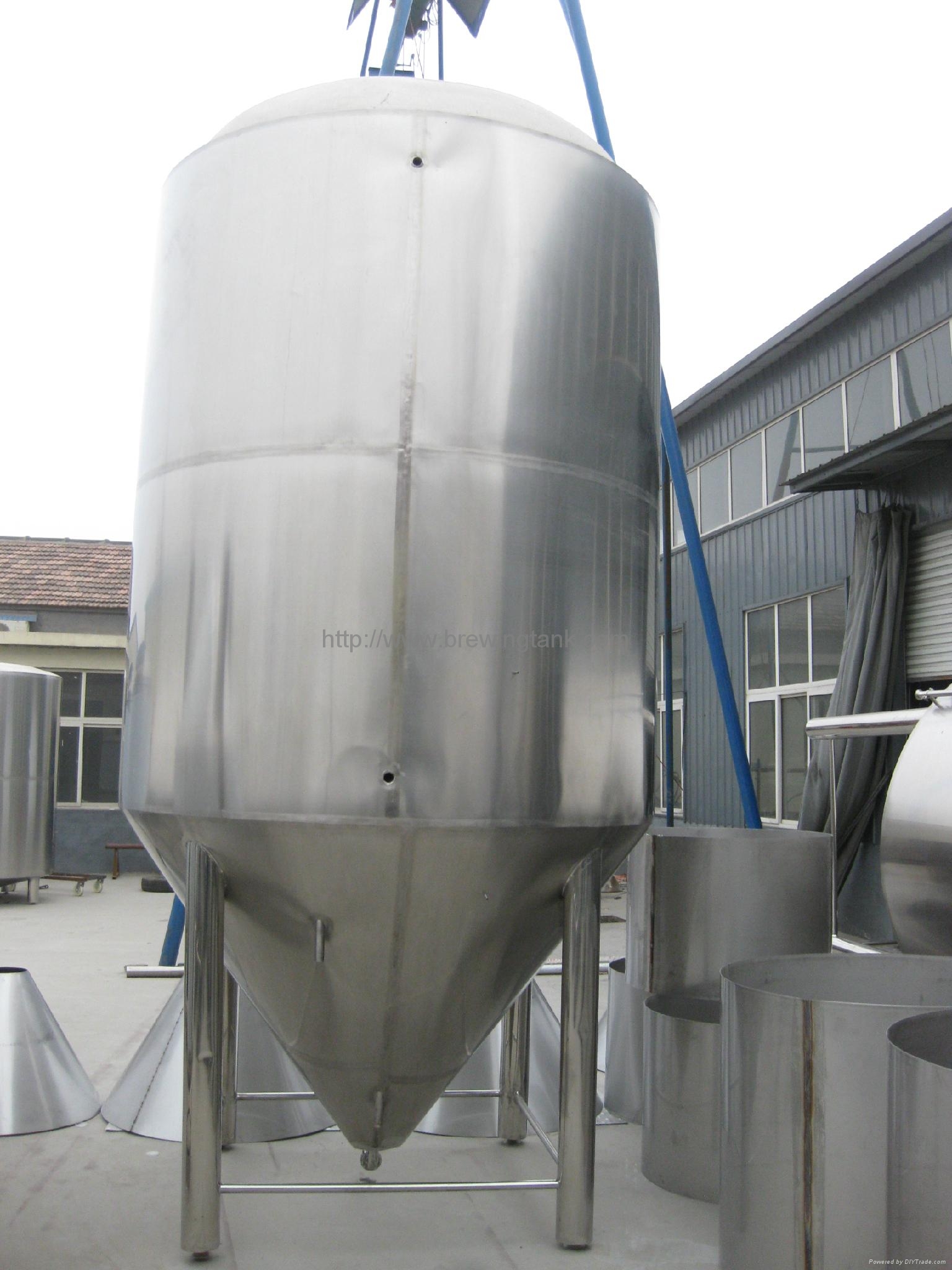

Fermentation system:
1) - Inner wall stainless steel 304, 3mm;
- surface wall stainless steel 304, 2mm
2)-Dome top, conical bottom,
-Side manway
3) -Insulation: polyurethane 100mm
4) -Glycol cooling jackets on both cylinder and cone
5) - Inside 360 degree rotating CIP washing ball;
- CIP arm
- Pressure gauge
- safety&vacuum valve on top
- sample valve
- rotating racking arm
- thermometer
-carbonation stone (optional)
- dry hops port on top
6) -100% TIG welding with pure argon gas shield
-Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner
-Testing pressure: 3 bar
-working pressure: 1.5-2 bar
For Your Reference:
1. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L...( 1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.
It can be customized, such as the capacity, material, voltage(like 380v, 50Hz, 3phases), heating source, etc.
2. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,
to meet different taste of customers.
OPTIONAL:
Beer bottling line: bottle washing machine, filling machine, capping machine,
pasteurization tank, labelling machine.
Kegs washer and filler.
Beer kegs(10L,20L,30L,50L...).
Steam boiler.
