Beer Brewing Equipment
MAIN CONFIGURATIONS:
This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank), please check the details in the following chart.
Optional: 1- mash/brew kettle, lauter tun/whirlpool
2- mash/brew kettle, lauter tun, whirlpool
3- mash tun, lauter tun, brew kettle/whirlpool
4- mash tun, lauter tun, brew kettle, whirlpool
This is the 1000L brewing system configuration for your reference.
|
Items
|
Equipment
|
Specification
|
Quantity
(PCS)
|
|
Malt miller
|
Malt miller
|
300kg/hour
|
1
|
|
Brew house
|
Mash tun/lautering tun
|
1000L
|
1
|
|
Brew kettle/whirlpool
|
1000L
|
1
|
|
Hot liquor tank
|
1000L
|
1
|
|
Plate heat exchanger
|
12 m2
|
1
|
|
Pump
|
3 m³/h
|
1
|
|
Working platform
|
|
1
|
|
Fermentation
|
Fermenter
|
1000L
|
6
|
|
Yeast adding tank
|
30L
|
1
|
|
Wort oxygenator
|
|
1
|
|
Cooling unit
|
Glycol water tank
|
1500L
|
1
|
|
Cooling compressor
|
7hp
|
1 |
|
Water pump
|
3 m³/h
|
1
|
|

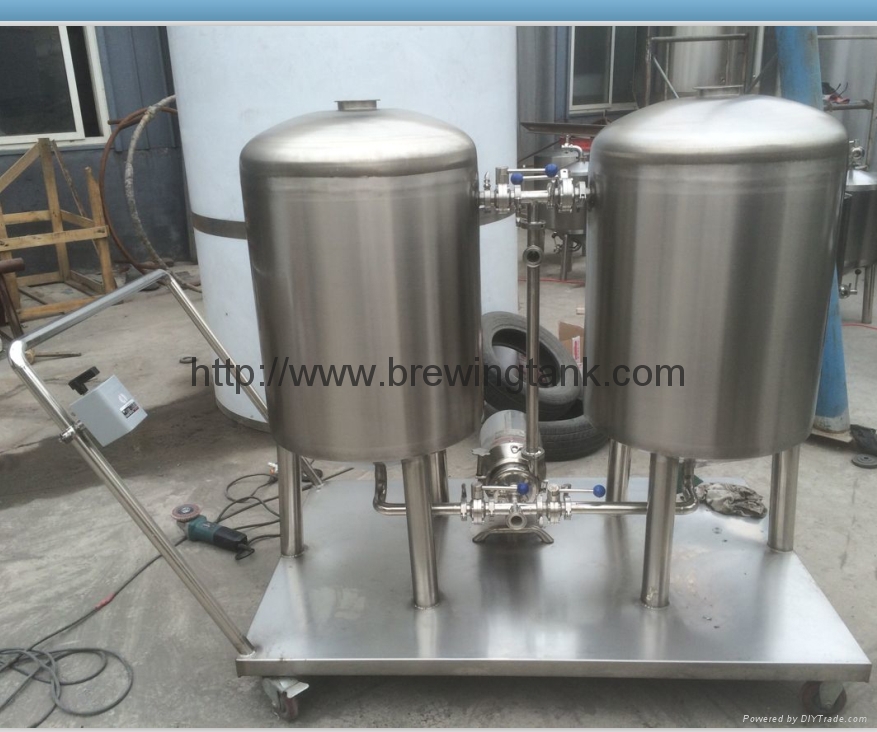

CIP unit
|
Alkali tank
|
100L
|
1
|
|
Sterilization tank
|
100L
|
1
|
|
Pump
|
3 m³/h
|
1
|
|
Control unit
|
Siemens PLC controlling system
|
1
|
|
Filter system
|
Kieselguhr filter machine
|
200L/H
|
1
|
|
Bright beer tank
|
1000L
|
1
|
|
Spare parts
|
All necessary spare parts such as pipes, valves, gauges and clamps…etc.
|
Heating source: electricity, gas fired or steam heating
Material: stainless steel 304/316 or copper
Warranty: 36 months for main equipments
Main features of brewhouse and fermentation:
Brewhouse system:
1) - interior wall stainless steel 304, 3mm;
-exterior wall stainless steel 304, 2mm
2) -Dome top, top manway with glass
-Side manway, cone bottom 160 degree
3) -Insulation: polyurethane/rockwool 100mm;
- with inside CIP washing ball
- raking agitator
- removable false bottom
- sparging arm, sight glass
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer....

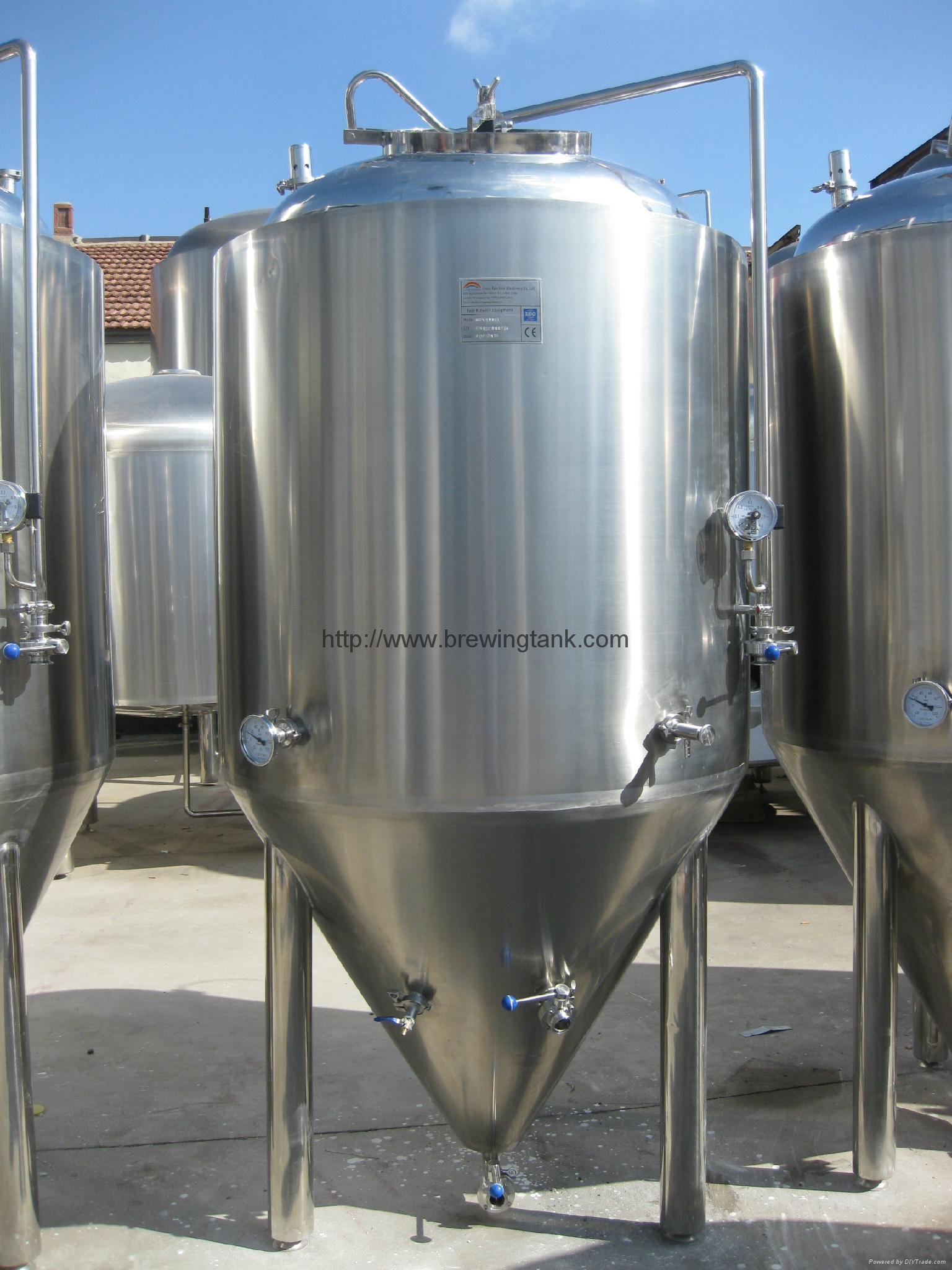

Fermentation system:
1) - Interior wall stainless steel 304, 3mm;
- exterior wall stainless steel 304, 2mm
2) -Dome top, conical bottom,
-Top mounted manway
3) -Insulation: polyurethane 100mm
4) -Glycol cooling jackets on both cylinder and cone
5) -Inside 360 degree rotating CIP washing ball;
- CIP arm
- Pressure gauge
- safety&vacuum valve on top
- sample valve
- rotating racking arm
- thermometer
- dry hops port on top
-carbonation stone (optional)
6) -100% TIG welding with pure argon gas shield
-Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner
-Testing pressure: 3 bar
-working pressure: 1.5-2 bar
For Your Reference:
1. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 1200L, 2000L, 3000L, 5000L, 8000L...( 1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.
It can be customized, such as the capacity, material, voltage(like 380v, 50Hz, 3phases), heating source, etc.
2. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,
to meet different taste of customers.
OPTIONAL:
Beer bottling line: bottle washing machine, filling machine, capping machine,
pasteurization tank, labelling machine.
Kegs washer and filler.
Beer kegs(10L,20L,30L,50L...).
Steam boiler.
