Beer brewery equipment manufacturer. Material: SUS304/316, Inner wall: 3mm, outer wall: 2mm. Engineer available for overseas service. Warranty: 36 months for tanks.
We are a professional manufacturer and exporter of beer brewery equipment, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) with product design, production, sales, and installation support.
We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.
MAIN CONFIGURATIONS:
This is the 2000L brewing system configuration for your reference.
|
Items
|
Equipment
|
Specification
|
Quantity
(PCS)
|
|
Malt miller
|
Malt miller
|
500kg/h
|
1
|
|
Brew house
|
Mash tun
|
2000L
|
1
|
|
Lautering tun
|
2000L |
1 |
|
Brew kettle/whirlpool
|
2000L
|
1
|
|
Hot liquor tank
|
3000L
|
1
|
|
Plate heat exchanger
|
20 m2
|
1
|
|
Pump
|
5m³/h
|
2
|
|
Wort oxygenator
|
|
1
|
|
Working platform
|
|
1
|
|
Fermentation
|
Fermenter
|
2000L
|
6
|
|
Yeast tank
|
50L
|
1
|
|
Cooling unit
|
Glycol water tank
|
3000L
|
1
|
|
Cooling compressor
|
7hp
|
2
|
|
Water pump
|
3 m³/h
|
1
|
|
CIP unit
|
Alkali tank
|
200L
|
1
|
|
Sterilization tank
|
200L
|
1
|
|
Pump
|
3 m³/h
|
1
|
|
Control unit
|
Siemens PLC/PID controlling system
|
1
|
|
Filter system
|
Kieselguhr filter machine
|
500L/H
|
1
|
|

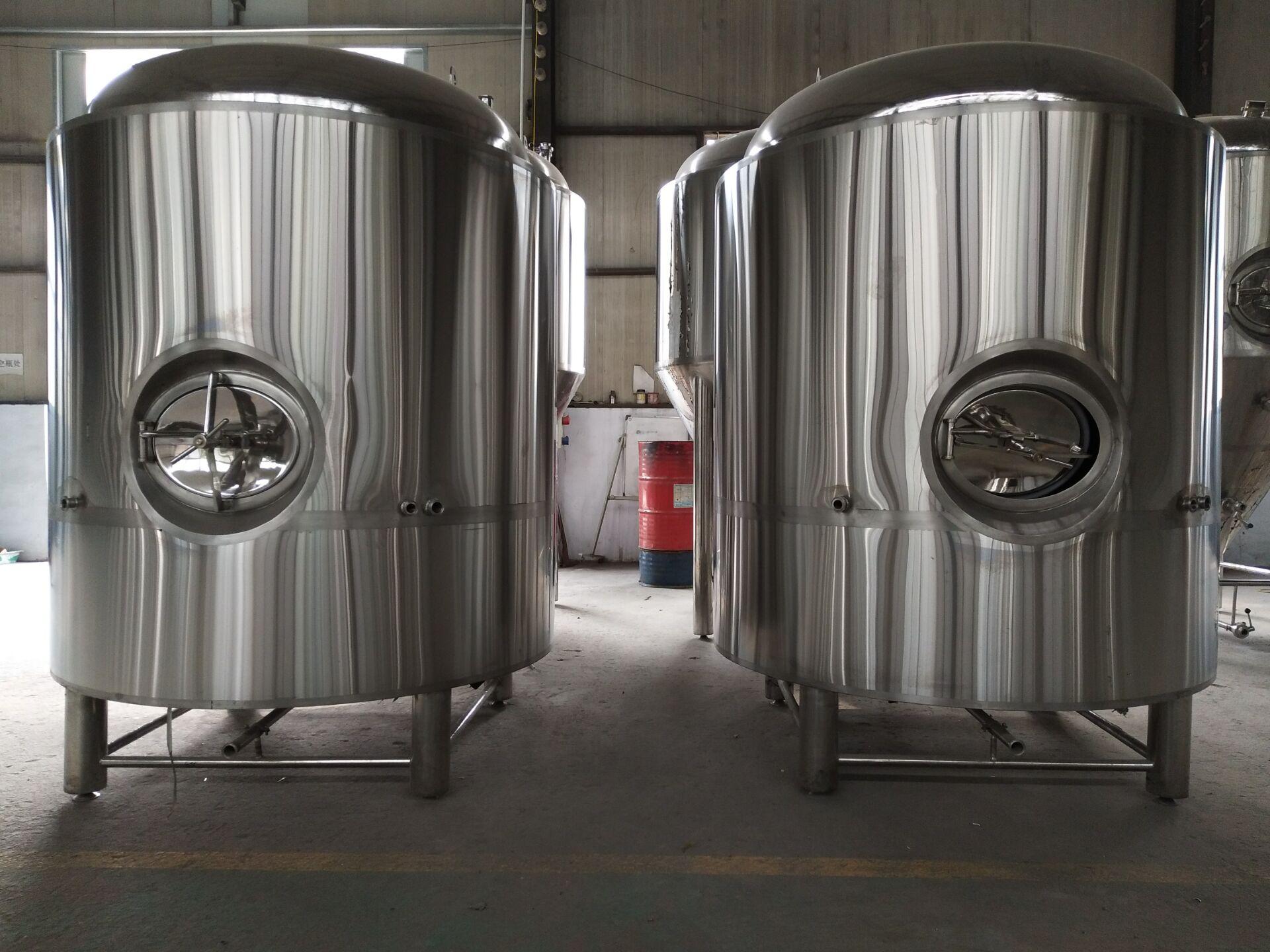

Bright beer tank
|
2000L
|
1
|
|
Spare parts
|
All necessary spare parts such as pipes, valves, gauges and clamps…etc.
|
Heating source: electric, gas fired or steam
Material: stainless steel 304 or copper
Main specs of brewhouse and fermentation:
Brewhouse system:
1) - Inner wall stainless steel 304, 3mm;
-surface wall stainless steel 304, 2mm
2) - Dome top,top manway with glass
- Side manway,cone bottom 160 degree
3) - insulation: polyurethane/rockwool 100mm;
- with inside CIP washing ball
- agitator, rake
- removable false bottom, 5mm thickness
- sparging arm, sight glass
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer....

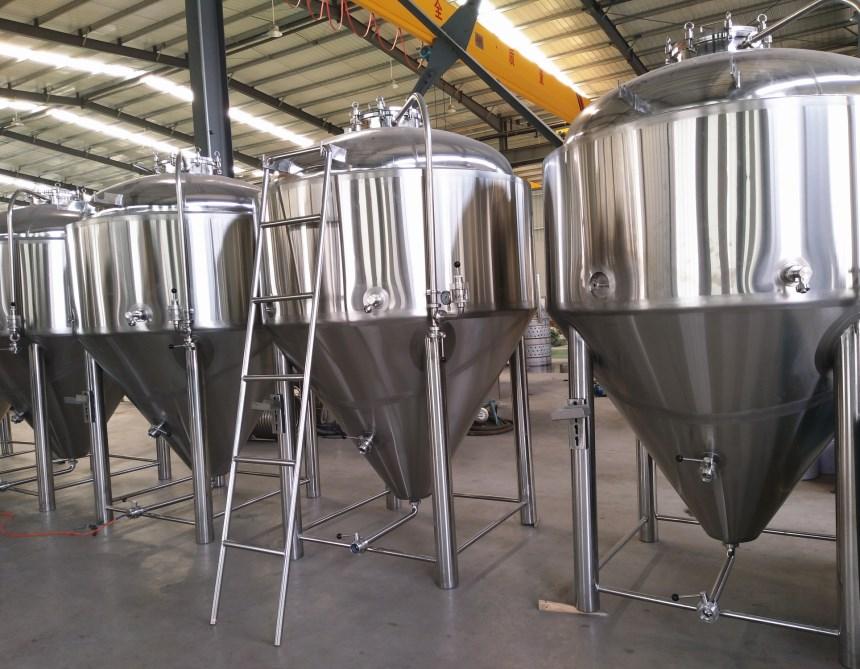

Fermentation system:
1) - Inner wall stainless steel 304, 3mm;
-surface wall stainless steel 304, 2mm
2) -Dome top, conical bottom,
-Side mounted manway
3) -Insulation: polyurethane 100mm
4) -Glycol cooling jackets on both cylinder and cone
5) -Inside 360 degree rotating CIP washing ball;
- CIP arm
- Bung device(pressure relief valve, pressure gauge)
- safety&vacuum valve on top
- sample valve
- rotating racking arm
- thermometer
-carbonation stone (optional)
- dry hops port on top
6) -100% TIG welding with pure argon gas shield
-Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner
-Testing pressure: 3 bar
-working pressure: 1.5-2 bar
Tips:
1. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 1200L, 2000L, 3000L, 5000L, 8000L...( 1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.
It can be customized, such as the capacity, material, voltage(like 380v, 50Hz, 3phases), heating source, etc.
2. For electric machine parts, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB, UL standard, etc. .
OPTIONAL:
Beer bottling line: bottle washing machine, filling machine, capping machine,
pasteurization tank, labelling machine.
Kegs washer and filler.
Beer kegs(10L,20L,30L,50L...).
Steam boiler.
