MAIN CONFIGURATIONS:
This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquor tank), please check the details in the following chart.
This is the configuration of 1000L brewing system for your reference.
|
Items
|
Equipment
|
Specification
|
Quantity
(PCS)
|
|
Malt miller
|
Malt miller
|
300kg/hour
|
1
|
|
Brew house
|
Mash/lautering tun
|
1000L
|
1
|
|
Brew kettle/whirlpool
|
1000L
|
1
|
|
Hot liquor tank
|
1000L
|
1
|
|
Plate heat exchanger
|
12 m2
|
1
|
|
Pump
|
3 m³/h
|
2
|
|
Oxygenator
|
|
1
|
|
Working platform
|
|
1
|
|
Fermentation
|
Fermenter
|
1000L
|
6
|
|
Yeast adding tank
|
30L
|
1
|
|
Cooling unit
|
Glycol water tank
|
1500L
|
1
|
|
Cooling compressor
|
8hp
|
1
|
|
Water pump
|
3 m³/h
|
1
|
|
CIP unit
|
Alkali tank
|
100L
|
1
|
|
Sterilization tank
|
100L
|
1
|
|
Pump
|
3 m³/h
|
1
|
|
Control unit
|

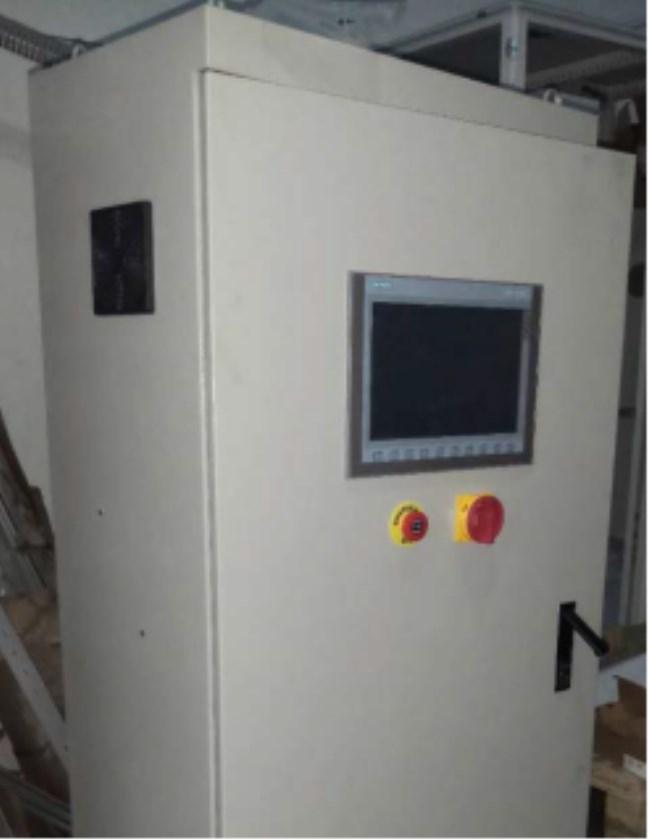

Siemens PLC/PID control panel
|
1
|
|
Filter system
(optional)
|
Kieselguhr filter machine
|
500L/H
|
1
|
|
Bright beer tank
|
1000L
|
1
|
|
Spare parts
|
All necessary spare parts such as pipes, valves, gauges and clamps…etc.
|
Heating source: electric, steam or gas fired heating
Material: stainless steel 304/316 or copper
Warranty: 36 months
Main specifications of brewhouse and fermentation:
Brewhouse system:
Optional combination of brewhouse:
1- mash/brew kettle, lauter tun/whirlpool, hot liquor tank
2- mash/brew kettle, lauter tun, whirlpool, hot liquor tank
3- mash tun, lauter tun, brew kettle/whirlpool, hot liquor tank
4- mash tun, lauter tun, brew kettle, whirlpool, hot liquor tank
1) - Inner wall stainless steel 304, 3mm;
- surface wall stainless steel 304, 2mm
2) -Dome top, top manway with glass
-Side manway, cone bottom 160 degree
3) - Insulation: polyurethane/rockwool 100mm;
-Inside CIP washing ball
-agitator
-removable false bottom
- sparging arm, sight glass
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer....
-Wort grant, auger, grain case, hydrator (optional)
Fermentation system:
1) - Inner wall stainless steel 304, 3mm;
- surface wall stainless steel 304, 2mm
2) - Dome top, conical bottom,
-Top/side mounted manway
3) - Insulation: polyurethane 100mm
4) - Glycol cooling jackets on both cylinder and cone
5) - Inside 360 degree rotating CIP washing ball;
- CIP arm
- Pressure gauge
- safety&vacuum valve on top
- sample valve
- rotating racking arm
- thermometer
-carbonation stone, level indicator(optional)
- dry hops port
6) -Testing pressure: 3 bar
-working pressure: 1.5-2 bar
OPTIONAL:
- Beer bottling machine: bottle washing machine, filling&capping machine, labelling machine.
-Kegs washer and filler.
-Beer kegs(10L,20L,30L,50L...), USA standard kegs.
-Steam boiler.
