MAIN TECHNICAL PARAMETERS:
This brewhouse system configuration includes 3 tanks(mash tun/ lautering tun, brew kettle/whirlpool, hot liquor tank), please check the details in the following chart.
Optional: 1- mash/brew kettle, lauter tun/whirlpool
2- mash tun, lauter tun, brew kettle/whirlpool
This is the 300L complete beer brewing system for your reference.
|
Item
|
Equipment
|
Specification
|
Quantity
|
|
Malt miller
|
Malt miller
|
300kg/h
|
1
|
|
Brewhouse system
|
Mash tun&lautering tun
|
300L
|
1
|
|
Brew kettle&whirlpool
|
300L
|
1
|
|
Hot liquor tank
|
300L
|
1
|
|
Plate heat exchanger
|
3m2
|
1
|
|
Wort pump
|
3m3/h
|
1
|
|
Wort oxygenator
|
|
1
|
|
Working platform
|
|
1
|
|
Fermentation system
|
Fermenter
|
300L
|
6
|
|
Yeast adding tank
|
20L
|
1
|
|
Cooling system
|
Glycol water tank
|
500L
|
1
|
| Glycol chiller |
3hp
|
1
|
|
Pump
|
3m3/h
|
1
|
|
CIP washing system
|
Alkali tank
|
50L
|
1
|
|
Sterilization tank
|
50L
|
1
|
|
Pump
|
3m3/h
|
1
|
|
Control system
|
Digital display control box
|
|
1
|
|
Spare parts
|
All the necessary spare parts
|
|
Heating source: electricity, gas fired heating or steam
Material: stainless steel 304 or copper
Warranty period: 36 months
Main features of brewhouse and fermentation:
Brewhouse system:
1) - Inner wall stainless steel 304, 3mm;
- surface wall stainless steel 304 or copper, 2mm
2) -Dome top, top manway with glass
-Side manway, cone bottom 160 degree
3) - Insulation: polyurethane/rockwool 100mm;
- with inside CIP washing ball
- raking agitator
- removable false bottom
- sparging arm, sight glass
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer....

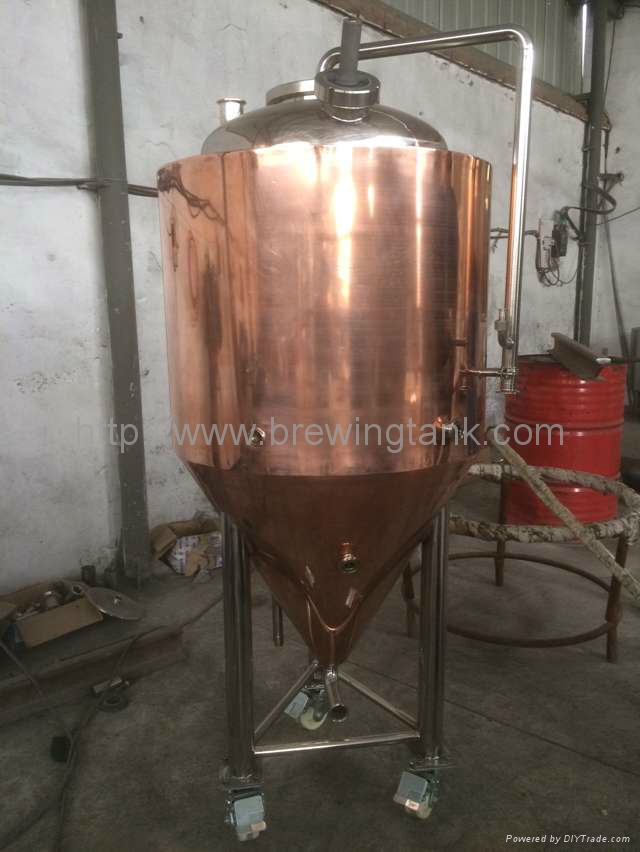

Fermentation system:
1) - Inner wall stainless steel 304, 3mm;
- surface wall stainless steel 304, 2mm
2) -Dome top, conical bottom,
-Top manway
3) -Insulation: polyurethane 100mm
4) -Glycol cooling jackets on both cylinder and cone
5) - Inside 360 degree rotating CIP washing ball;
- CIP arm
- Pressure gauge
- safety&vacuum valve on top
- sample valve
- rotating racking arm
- thermometer
- dry hops port on top
-carbonation stone (optional)
6) -100% TIG welding with pure argon gas shield
-Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner
-Testing pressure: 3 bar
-working pressure: 1.5-2 bar
For Your Reference:
1. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L...( 1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.
It can be customized, such as the capacity, material, voltage(like 380v, 50Hz, 3phases), heating source, etc.
2. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,
ALE or lager.
OPTIONAL:
Beer bottling line: bottle washing machine, filling machine, capping machine,
pasteurization tank, labelling machine.
Kegs washer and filler.
Beer kegs(10L,20L,30L,50L...).
Steam boiler.
Company Profile:
We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.
We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.
