COMPANY PROFILE:
We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.
We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Belgium, Australia, Taiwan....etc.
CONFIGURATIONS:
This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquor tank), please check the details in the following chart.
Optional combination: 1- mash/brew kettle, lauter tun/whirlpool
2- mash/brew kettle, lauter tun, whirlpool
3- mash tun, lauter tun, brew kettle/whirlpool
4- mash tun, lauter tun, brew kettle, whirlpool
The 500L brewing system configuration for your reference.
|
ITEMS
|
EQUIPMENT LIST
|
CAPACITY
|
QTY
|
|
Malt miller
|
Malt Miller
|
300kg/h
|
1
|
|
BrewHouse System
|
Mash Tun & Lautering Tun
|
500L
|
1
|
|
Brew Kettle & Whirlpool
|
500L
|
1
|
|
Hot Liquor Tank
|
500L
|
1
|
|
Plate Heat Exchanger
|
6m2
|
1
|
|
Pump
|
3m³/h
|
2
|
|
Oxygenator
|
|
1
|
|
Working platform
|
|
1
|
|
Fermentation System
|
Fermentation Tank
|
500L
|
6
|
|
Yeast Adding Tank
|
20L
|
1
|
|
Cooling System
|
Glycol Water Tank
|
1000L
|
1
|
|
Refrigerator
|
5hp
|
1
|
|
Cooling water pump
|
3m³/h
|
1
|
|
CIP Washing System
|
Alkali Tank
|
100L
|
1
|
|
Sterilization tank
|
100L
|
1
|
|
CIP water pump
|
3m³/h
|
1
|
|
Control System
|
Digital display controlling system
|
1
|
Heating source: electric, steam or gas fired heating
Material: stainless steel 304 or copper
Warranty: 36 months for main equipments
For electric parts, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB....etc. Also can do UL standard.
OPTIONAL:
Semi-automatic bottling machines: bottle filling&capping machine.
Labelling machine. Bottle washing machines.
Kegs washer and filler.
Beer kegs(10L,20L,30L,50L...), US standard kegs.
Steam boiler.
Main specs of brewhouse and fermentation system:
Brewhouse system:
1) - Inner wall stainless steel 304, 3mm;
- surface wall stainless steel 304 or copper, 2mm
2) -Dome top, top manway with glass
-Side manway, cone bottom 160 degree
3) - Insulation: polyurethane 100mm;
- CIP washing ball
- agitator
- removable false bottom
- sparging arm, sight glass
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer....
-Level tube(optional)
Fermentation system:
1) - Inner wall stainless steel 304, 3mm;
- surface wall stainless steel 304, 2mm
2) -Dome top, conical bottom,
-Top mounted manway
3) -Insulation: polyurethane 100mm
4)-Glycol cooling jackets on both cylinder and cone
5) - Inside 360 degree rotating CIP washing ball;
- CIP arm
- Pressure gauge
- relief&vacuum valve on top
- sample valve
- rotating racking arm on cone with butterfly valve
- thermometer
-dry hops port on top
-carbonation stone (optional)
6) -100% TIG welding with pure argon gas shield
-Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner
-Testing pressure: 3 bar
-working pressure: 1.5-2 bar

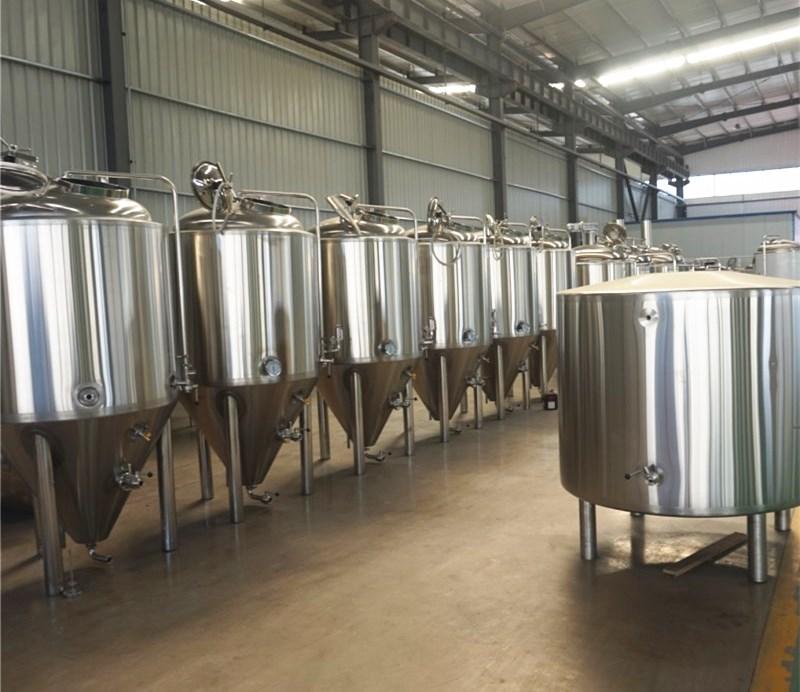

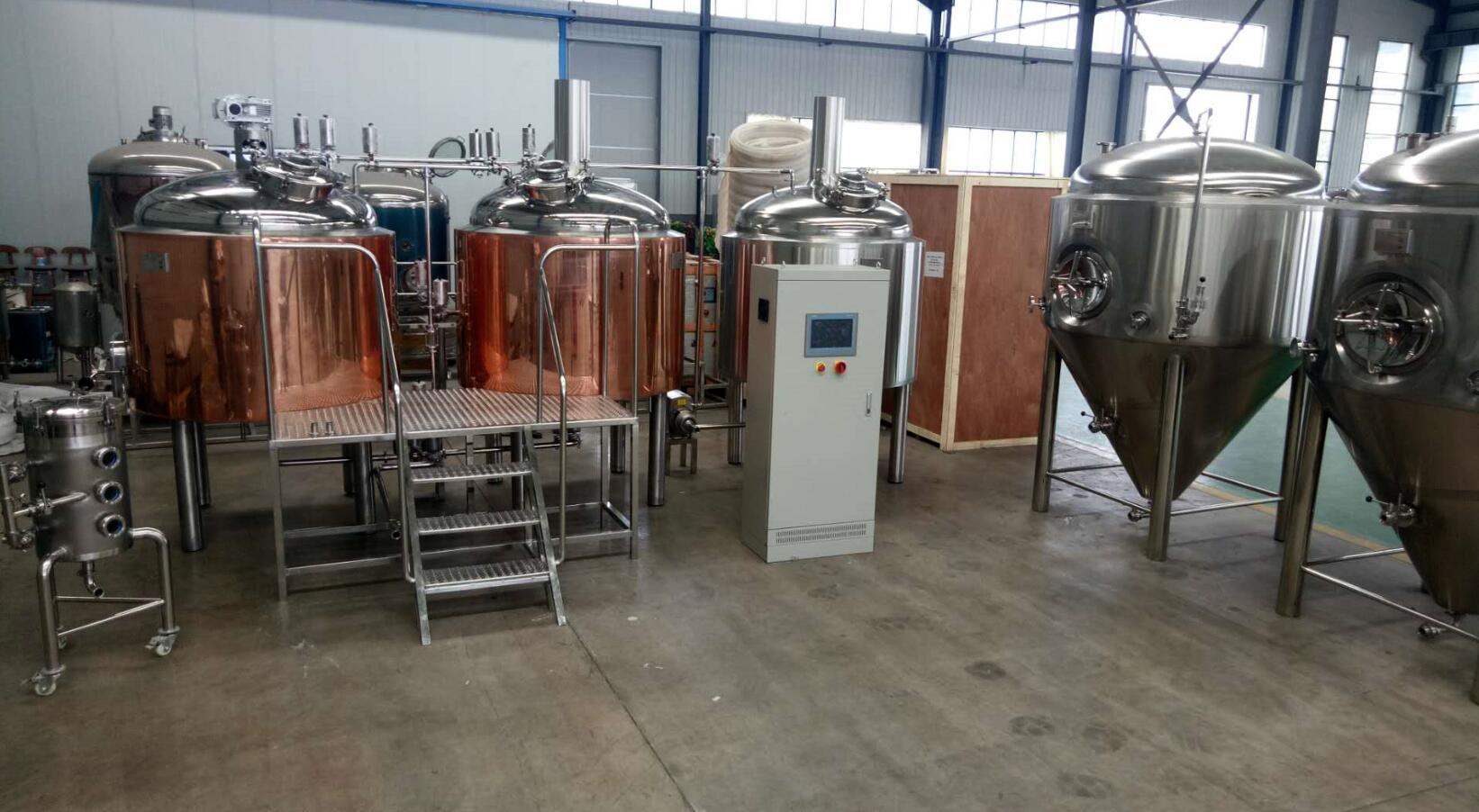

Reference pictures:
