Product Description

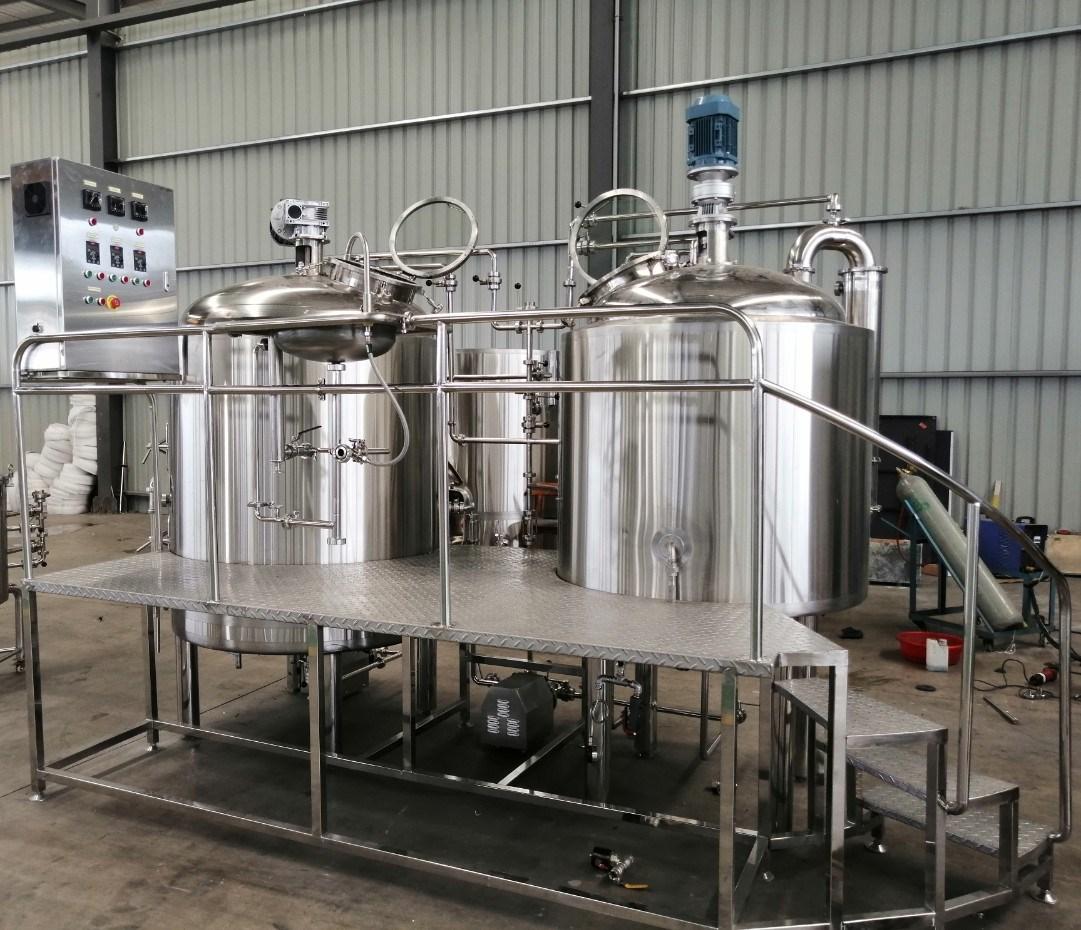

Brewhouse System
-Dome top and cone bottom
-Interior Shell:SUS304,thickness:3.0mm
-Exterior Shell: SUS304,thickness:2.0mm
-Insulation:Polyurethane, thickness:100mm
-100%TIG welding with pure argon gas shield
-Interior Fish:Overall polishing to 0.4~0.6 µm without dead corner
-Side manway for spent grains
-Easy-clean and detachable sparging arm
-Easy-clean and detachable false bottom
Options
2-vessel: mash/brew kettle, lauter tun/whirpool
2-vessel: mash/lauter tun, brew kettle/whirpool
3-vessel: mashtun, lauter tun, brew kettle/whirpool
4-vessel: mash tun, lauter tun, brew kettle, whirpool

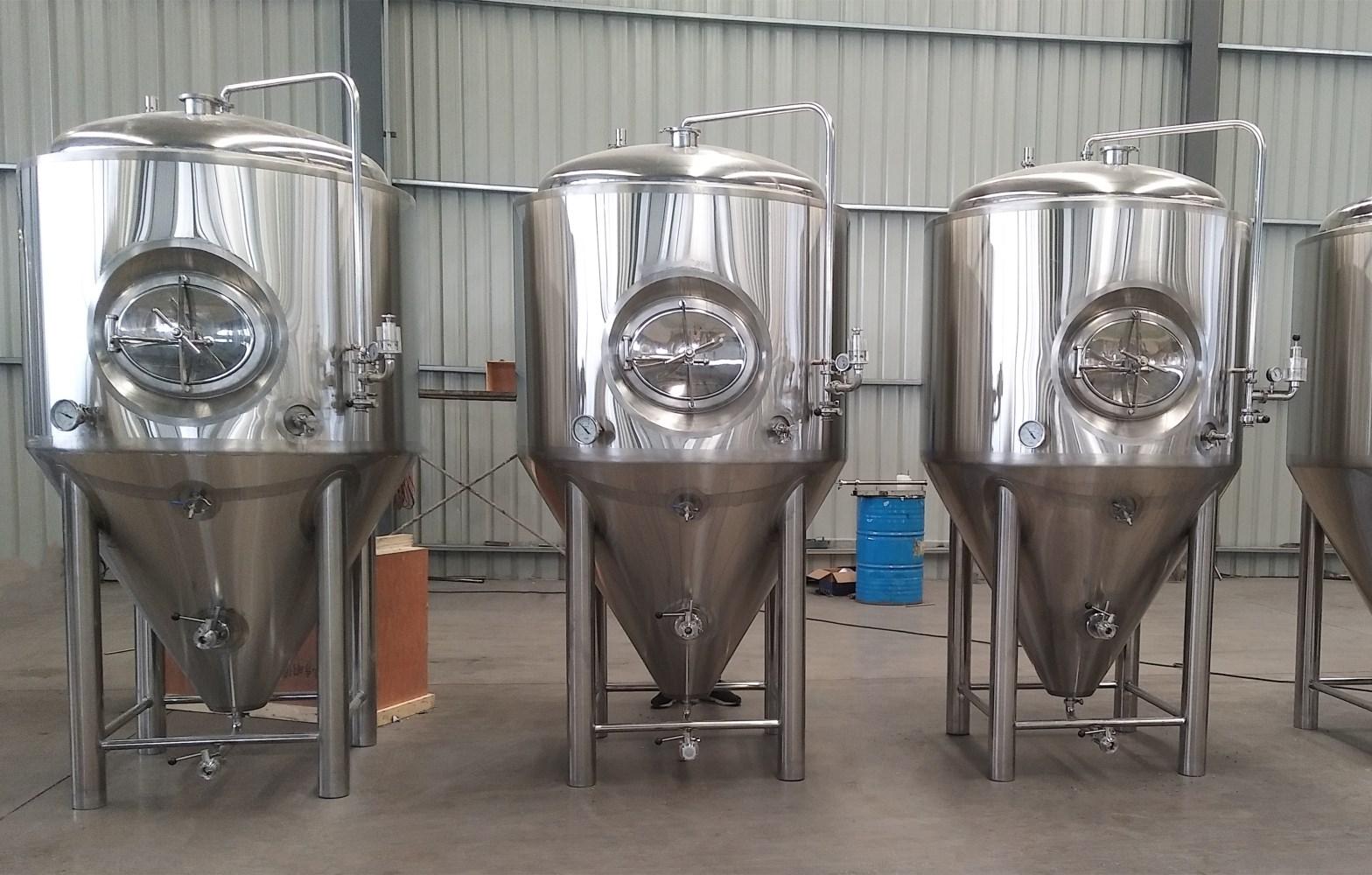

Fermentation System
-Dome top and cone bottom;bottom cone 60 degree
-Interior Shell:SUS304,thickness:3.0mm
-Exterior Shell: SUS304,thickness:2.0mm
-Insulation:Polyurethane, thickness:100mm
-100%TIG welding with pure argon gas shield
-Interior Fish:Overall polishing to 0.4~0.6µm without dead corner
-Cooling jacket:both on cone and cylinder parts
-Cooling media: glycol water
-Test pressure:0.3Mpa,Working pressure:0.2Mpa
-Rotating racking arm on cone with butterfly valve
-Thermowell with high accuracy temperature sensor:PT100
-3/4 Legs with height adjustable pad
Optional:
-Carbonation stone
-Bright beer tank
Product Show
Packing & Delivery
Certifications
