7BBL Pub beer brewing equipment
COMPANY PROFILE:
We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.
We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.
MAIN CONFIGURATIONS:
This brewhouse system includes 3 tanks(mash tun/lauter tun, brew kettle/whirlpool, hot liquor tank), please check the details in the following chart.
Optional: 1- mash/brew kettle, lauter tun/whirlpool
2- mash tun, lauter tun, brew kettle/whirlpool
3- mash tun, lauter tun, brew kettle, whirlpool
This is the 500L beer brewing system for your reference.
|
Items
|
Equipment
|
Specification
|
Quantity
(PCS)
|
|
Malt miller
|
Malt miller
|
300kg/hour
|
1
|
|
Brew house
|
Mash tun/lautering tun
|
7BBL
|
1
|
|
Brew kettle/whirlpool
|
7BBL
|
1
|
|
Hot liquor tank
|
14BBL
|
1
|
|
Plate heat exchanger
|
8 m2
|
1
|
|
Pump
|
3 m³/h
|
2
|
|
Oxygenator
|
|
1
|
|
Working platform
|
|
1
|
|

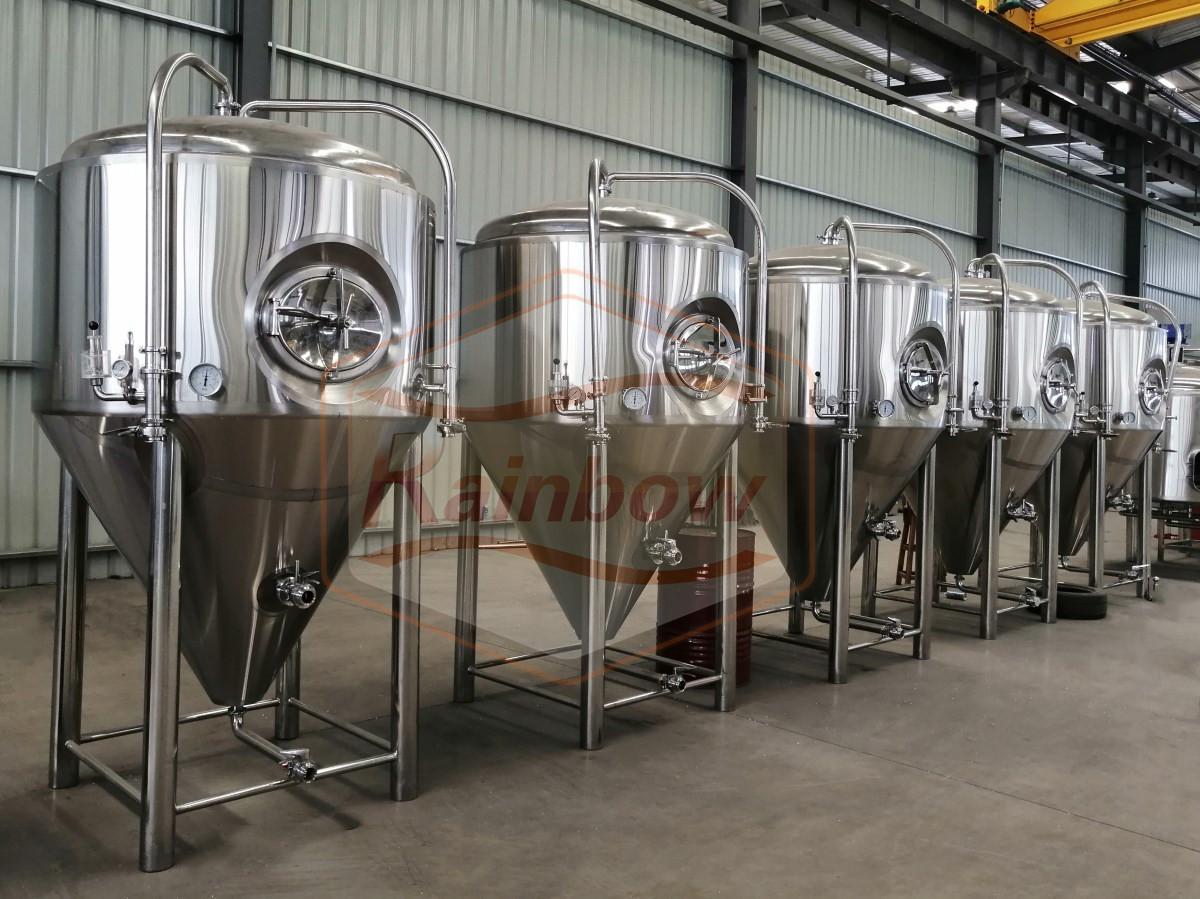

Fermentation
|
Fermenter
|
7BBL
|
6
|
|
Yeast adding tank
|
30L
|
1
|
|
Cooling unit
|
Glycol water tank
|
1500L
|
1
|
|
Chiller
|
5hp
|
2
|
|
Water pump
|
3 m³/h
|
1
|
|
CIP unit
|
Alkali tank
|
100L
|
1
|
|
Sterilization tank
|
100L
|
1
|
|
Pump
|
3 m³/h
|
1
|
|
Control unit
|
PID control box
|
1
|
|
Spare parts
|
All necessary spare parts such as pipes, valves, gauges and clamps…etc.
|
Heating source: electricity, direct fired or steam
Material: stainless steel 304 or copper
Main specs of brewhouse and fermentation:
Brewhouse system:
1) - Interior wall stainless steel 304, 3mm;
- Exterior wall stainless steel 304 or copper, 2mm
2) - Dome top, top manway with glass
-Side manway, cone bottom 160 degree
3) - Insulation: polyurethane/rockwool 100mm;
- with inside CIP washing ball
- agitator
- removable false bottom
- sparging arm, sight glass
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer....
-100% TIG welding with pure argon gas shield
-Interior Finish: Overall polishing to 0.4~0.6μm without dead corner
Fermentation system:
1) - Interior wall stainless steel 304, 3mm;
-Exterior wall stainless steel 304, 2mm
2) - Dome top, conical bottom,
- Top mounted manway
3) - Insulation: polyurethane 100mm
4) - Glycol cooling jackets on both cylinder and cone
5) - Inside 360 degree rotating CIP washing ball;
- CIP arm
- Pressure gauge
- relief&vacuum valve on top
-sample valve
- rotating racking arm on cone with butterfly valve
- thermometer
-carbonation stone (optional)
-level gauge(optional)
- dry hops port on top
-100% TIG welding with pure argon gas shield
-Interior Finish: Overall polishing to 0.4~0.6μm without dead corner
6) -Testing pressure: 3 bar
- working pressure: 1.5-2 bar
For your information:
1. For electric machine parts, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB....etc. And UL standard.
2. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 1200L, 2000L, 3000L, 5000L, 8000L...(1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.
It can be customized, such as the dimension(dimension can be adjustable)), material(SUS304/316/red copper), voltage(like 380v, 50Hz, 3phases), heating source(electric, steam or gas fired heating), etc.
3. Engineers are available for Overseas service. Provide beer production technology, installation, commissioning/testing and personal training.
