We provide small and medium brewery equipment for brewers on home and abroad.
Each of the brewing machine we product will be well welded, polished and tested before shipment.
Before you inquire, please confirm questions below:
1-Capacities from 100 liter to 10000 liter brewery can be chose, what capacity do you need, 100L per batch?
2-What kind of heating source do you prefer, electric, gas or steam?
3-Would you like some other equipment, such as bottle filling and capping machine, keg filling and cleaning machine, steam boiler, beer tower...?
4-What's the voltage in your place?
Here follows is the parameter of the 100 liter per batch restaurant micro brewery plant, please check for reference.
|
Items
|
Equipment
|
Specification
|
Quantity
|
|
Malt miller
|
Malt miller
|
200kg/hour
|
1
|
|

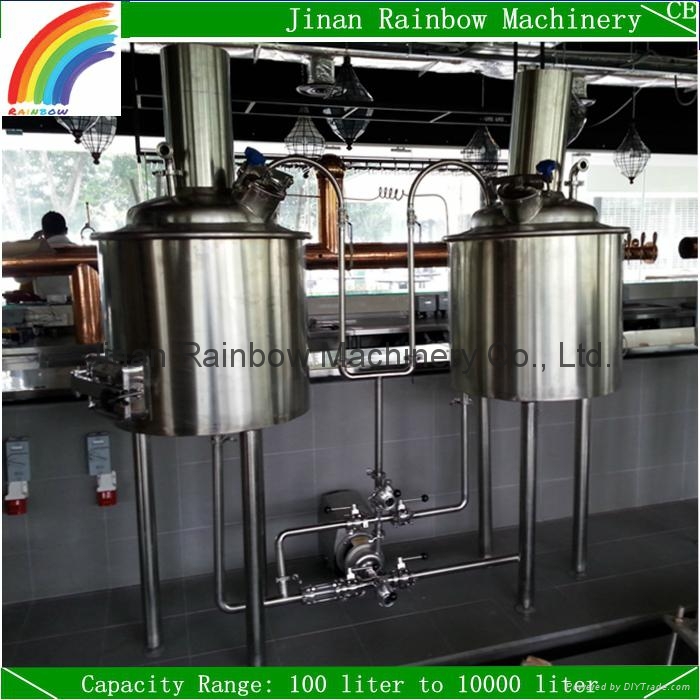

Brewhouse system
|
Mash tun&lautering tun
|
100L
|
1
|
|
Brew kettle&whirlpool
|
100L
|
1
|
|
Hot liquid tank
|
100L
|
1
|
|
Wort oxygenator
|
|
1
|
|
Plate heat exchanger
|
2m2
|
1
|
|
Pump
|
3t/h
|
1
|
|
Working platform
|
|
1
|
|
Fermentation system
|

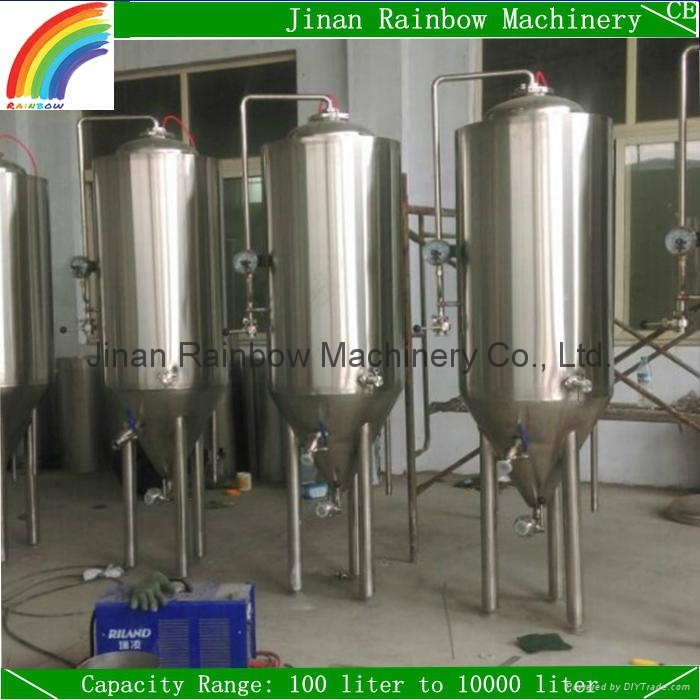

Fermenter
|
100L
|
6
|
|
Yeast adding tank
|
10L
|
1
|
|
Cooling system
|
Glycol water tank
|
200L
|
1
|
|
Cooling compressor
|
3hp
|
1
|
|
Pump
|
3t/h
|
1
|
|
CIP washing system
|
Alkali tank
|
30L
|
1
|
|
Sterilization tank
|
30L
|
1
|
|
Pump
|
3t/h
|
1
|
|
Control system
|
Digital display controlling system |
1
|
|
Spare parts
|
All spare parts
|
|
|
Specification of Our Main Tanks
mashing and fermenting tanks:
Inner wall: 3mm SUS 304; outer wall: brushed SUS 304; insulation: 100mm PU/rock wool; inside polishing 0.4-0.6um dome top with manhole; rotating CIP washing ball; thermowell for temperature sensor and thermometer
cooling tanks: Inner wall: 3mm SUS 304; outer wall: brushed SUS 304; insulation: 100mm PU or rock wool; inside cooling tube
Spare Parts
|
Our Spare Parts
|
|
Pipe line for brewhouse
|
SUS304
|
|
Measuring cylinder
|
SUS304
|
|
Butterfly valve
|
Ø32
|
|
Butterfly valve
|
Ø38
|
|
Sight glass
|
Ø32
|
|
Saccharimeter
|
0-10; 10-20
|
|
Spent grains harrow
|
SUS 304
|
|
Fermenter’s safety valve
|
ø32
|
|
Fermenter’s Sample valve
|
ø32
|
|
Pressure gauge
|
0-0.6Mpa
|
|
Pipe line for cooling unit
|
SUS 304
|
|
Cooling water solenoid valve
|
ø32
|
|
Cooling pipe insulation
|
|
|
Expansion valve for cooling compressor
|
|
|
Control box cable
|
|
|
Signal wire
|
|
|
SIEMENS frequency convertor
|
V20
|
|
Electric relay
|
Omron
|
|
Temperature sensor
|
PT100
|
Clients' Country
Germany, Czech Republic, USA, Canada, Russia, Sweden, Paraguay, Singapore, Australia, Finland...
Company Information
We, Jinan MIBE Machinery Co.,Ltd & Jinan Rainbow Machinery are a professional manufacturing and trading company for good quality Beer Brewing Systems, ranging from 100 liter to 10000 liter per batch, which is used for home, Bar/Pub, Restaurant, Hotel and Small Beer Factory.
- Brewhouse System
- Fermentation System
- Cooling System
- CIP System
- Control System
- Filtration System (need or not?)
- Bottle Filing Capping and Sealing Machines (need or not?)
- Keg Filling and Cleaning Machines (need or not?)
- Keg (need or not?)
- Steam Boiler (need or not?)
- Beer Tower (need or not?)
Functions
1-Brew all kinds of beer: pale beer, brown beer, stout beer....
2-Customize: a. capacity(100L, 200L, 300L, 500L, 1000L, 10BBL, 2000L, 3000L...)
b. voltage(220v or 380v or other electricity voltage )
c. material thickness(our standard is inner wall 3mm sus 304, outer wall 1.5mm sus304, insulation 100mmPU/ rock wool)
d. dimension of all the tanks(length, height, width)
e. heating source(electric, steam, direct gas fire heating)
f. we can make the tanks as per your design
3-Water and Pressure Test is made before shipment.
Finished Products
1. equipment images
2. Polishing and Welding
3. Packing and Delivery
4. Factory Image
