Brief Introduction
This Brewery is focus on clients that planning to brewing in pub or factory.
We provide small and medium brewery equipment for brewers on home and abroad.
Each of the brewing machine we product will be well welded, polished and tested before shipment.
Before you inquire, please confirm questions below:
1-How many beer do you want to brew in a batch, 500 liter per batch?
2-What kind of heating source do you prefer, electric, gas direct fire or steam?
3-Do you need other equipment, like steam boiler,bottle filling and capping machine, keg filling and capping machine...?
4-People in China use voltage of 380v, 50hz, 3 phases, what about the voltage in your place?
Here follows is the specification of 500 liter beer plant
|
Items
|
Equipment
|
Specification
|
Quantity
|
|
Malt miller
|
Malt miller
|
200kg/hour
|
1
|
|
Brewhouse system
|
Mash tun&lautering tun
|
500L
|
1
|
|
Brew kettle&whirlpool
|
500L
|
1
|
|

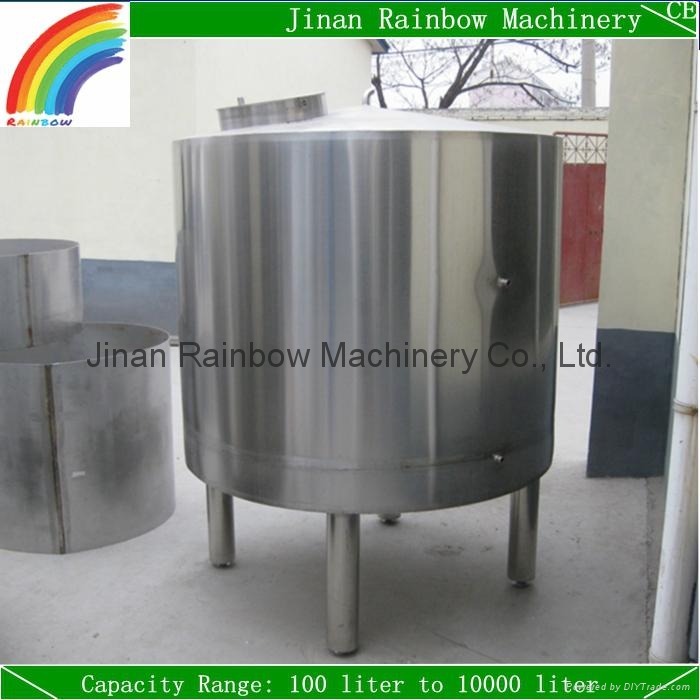

Hot liquid tank
|
500L
|
1
|
|
Plate heat exchanger
|
5m2
|
1
|
|
Wort oxygenator
|
|
1
|
|
Pump
|
3t/h
|
2
|
|
Working platform
|
|
1
|
|
Fermentation system
|

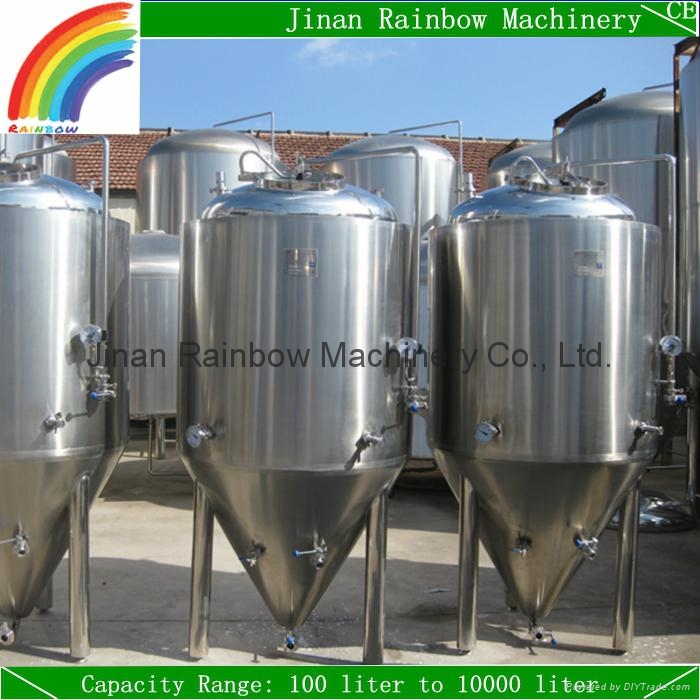

Fermenter
|
1000L
|
6
|
|
Yeast adding tank
|
50L
|
1
|
|
Cooling system
|
Glycol water tank
|
1500L
|
1
|
|

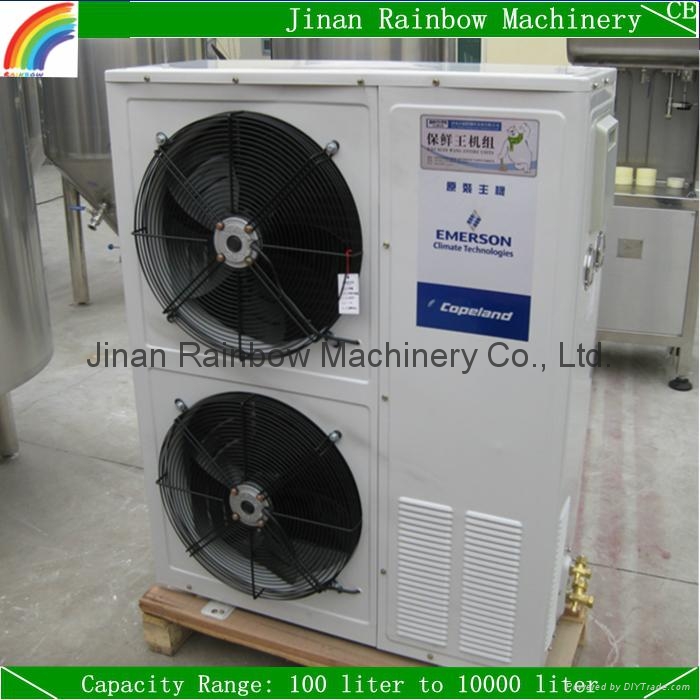

Cooling compressor
|
5hp
|
2
|
|
Pump
|
3t/h
|
1
|
|
CIP washing system
|
Alkali tank
|
200L
|
1
|
|
Sterilization tank
|
200L
|
1
|
|
Pump
|
3t/h
|
1
|
|
Control system
|
Digital display controling system |
1
|
|
Spare parts
|
All spare parts
|
|
|
Our Clients' Country Origin
Germany, Czech Republic, USA, Canada, Russia, Sweden, Paraguay, Singapore, Australia, Finland
Our Spare Parts
|
Spare Parts
|
|
Pipe line for brewhouse
|
SUS304
|
|
Measuring cylinder
|
SUS304
|
|
Butterfly valve
|
Ø32
|
|
Butterfly valve
|
Ø38
|
|
Sight glass
|
Ø32
|
|
Saccharimeter
|
0-10; 10-20
|
|
Spent grains harrow
|
SUS 304
|
|
Fermenter’s safety valve
|
ø32
|
|
Fermenter’s Sample valve
|
ø32
|
|
Pressure gauge
|
0-0.6Mpa
|
|
Pipe line for cooling unit
|
SUS 304
|
|
Cooling water solenoid valve
|
ø32
|
|
Cooling pipe insulation
|
|
|
Expansion valve for cooling compressor
|
|
|
Control box cable
|
|
|
Signal wire
|
|
|
SIEMENS frequency convertor
|
V20
|
|
Electric relay
|
Omron
|
|
Temperature sensor
|
PT100
|
Specification of Our Main Tanks
mash tun, brew kettle: ø1200*2600mm
hot liquid tank: ø1200*2100mm
fermenter tank: ø1000*2300mm
cooling tank(800L): ø1200*1600mm
Characteristics
1-Brew all kinds of beer: pale beer, brown beer, stout beer....
2-Customized parameter: a. capacity(100L, 200L, 300L, 500L, 1000L, 10BBL, 2000L, 3000L...)
b. voltage(220v or 380v or other electricity voltage )
c. material thickness(genarally inner wall 3mm sus304, outer wall 1.5mm sus304, insulation PU or rock wool 100mm)
d. dimension(length, height, width)
e. heating source(electric, steam, direct gas fire heating)
3-Water and Pressure Test is made before shipment.
4-Note: We have 2 kinds of mashing system, one kind is mash/lauter tun, brew kettle/whirlpool tank, hot liquid tank, the other is mash/brew kettle, lauter/whirlpool tank, hot liquid tank, which one do you prefer?
Services
| Considerate servise |
We can provide services such as product design( we recommend suitable equipment as per your budget), beer tank layout, installation and training of beer fermentation... |
| Relevant Equipment |
We can provide bottle filling and washing machine, keg filling and washing machine, label machine, keg and steam boiler as per your requirement |
| Guarantee |
36 months for the main tank |
Pictures
1. Factory Images
2. welding and polishing and package
3. certificate
4.
